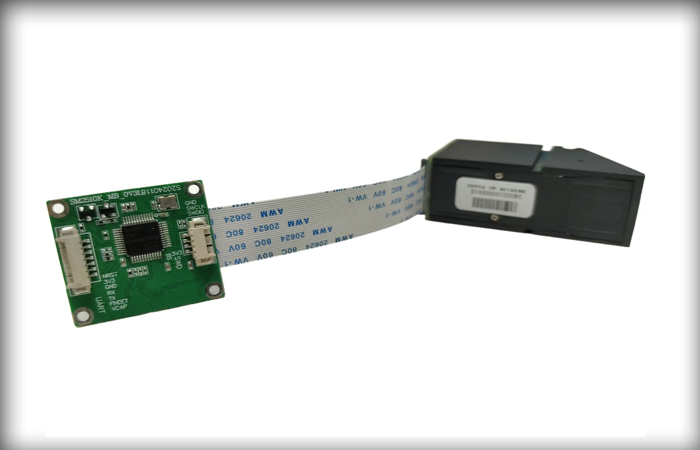

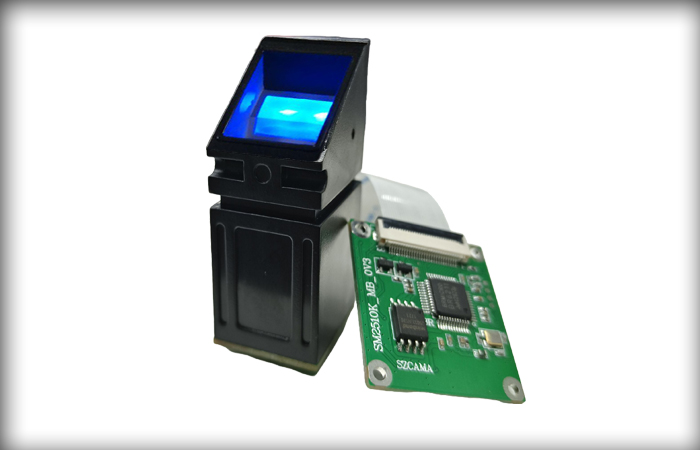

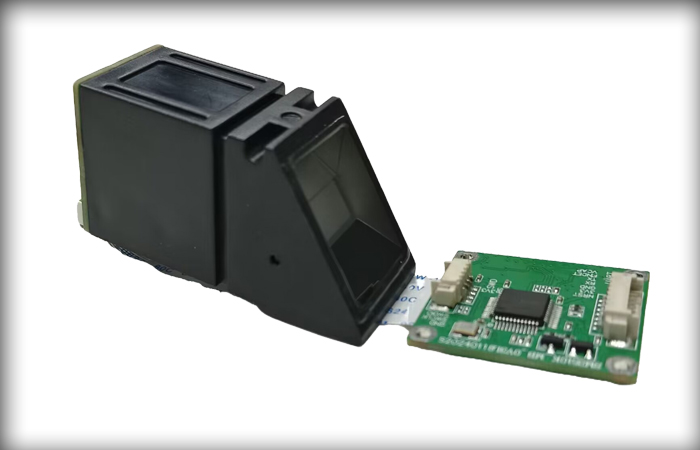

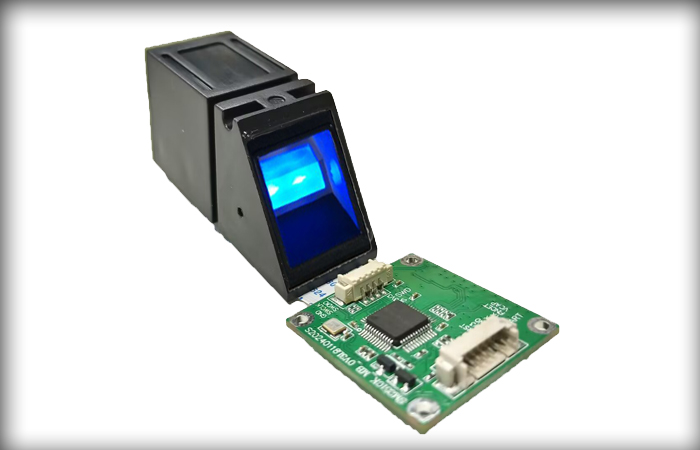

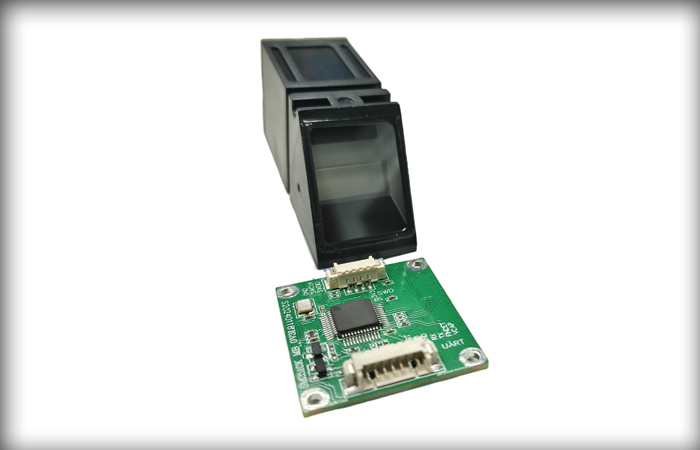

CAMA-SM2510K Optical Fingerprint Module with Large User Capacity


Product Name
CAMA-SM2510K Optical Fingerprint Module
Fingerprint Image
500 DPI
Fingerprint Capture Area 18mm x22mm
Fingerprint Capacity 9,998 Fingerprints
Fingerprint Template 496 Bytes
Support Interface 3.3V TTL UART
Verification Method
1:1 and 1:N

Product details

CAMA-SM2510K Optical Fingerprint Moduke With Large User Capacity

CAMA-SM2510K is an optical fingerprint module which special designed for time attendance and access control manufacturers who need large user capacity fingerprint. Powered by CAMABIO newest large user capacity fingerprint algorithm, CAMA-SM2510K have a lot of features like fast speed,high accuracy,auto-learning, 360 degree rotation verification,etc.

Product Features

   # 9998 fingerprints capacity

   # 360 degree identification

   # Auto-learning function

   # Touch Sense Activation function

   # Fast identification speed

   # Support 1:1: and 1:N verification

   # FAR<0.001% FAR<0.1%

   # Anti-scratch glass prism

Product Specifications

Item Description
Product Name CAMA-SM2510K Optical Fingerprint Module
Fingerprint Sensor CAMA optical fingerprint sensor
Fingerprint Scan Area 18mm x 22mm
Fingerprint Image 242 pixel x 266 pixel
Fingerprint Image Resolution 500 DPI
Fingerprint Template 496 bytes
Communication Interface  UART (3.3V)
FRR <0.1%
FAR <0.001%
Identification Speed 1:1<0.45s; 1:N(9998 fingerprints) <1.5s
Fingerprint Capacity 9998 Fingerprints
Work current < 280mA
Standby current < 20μA
Power supply DC 3.3V
Working temperature -25℃- 60℃
Working humidity 20%-80%

Product Size

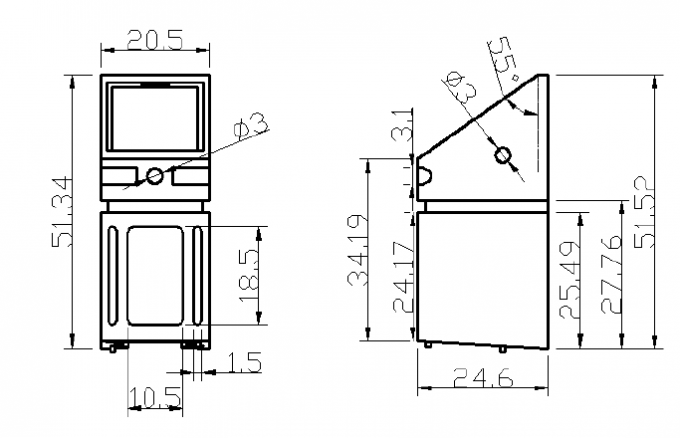

Optical Fingerprint Sensor Size

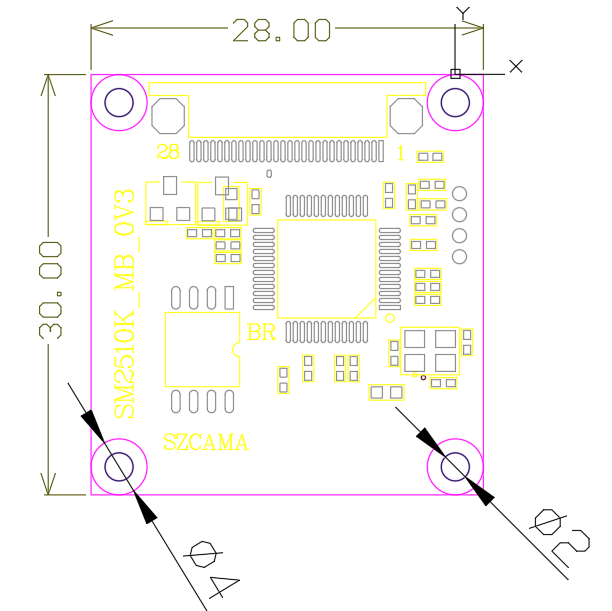

Main PCB Board Size

Interface Details

Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product


  1. User Manual of CAMA-SM2510K ( Command Protocols Included)

  2. DEMO Software For Testing Purpose

  3. Sample Code For Micro controller Unit


If you have any technical questions before you buy CAMA-SM2510K fingerprint module, you can contact cama@szcama.com for support.

Applications of CAMA-SM2510K optical fingerprint module

CAMA-SM2510K optical fingerprint module can be widely used for following products


1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Fingerprint car fleet management system

FAQs About CAMA-SM2510K Optical Fingerprint Module

1. Does the SM2510K support Windows, Android or Linux system?
    Answer:  Yes, SM2510K optical fingerprint module can work with these operating system.  Actually SM2510K optical fingerprint module is an OEM embedded optical fingerprint module, it can work with any operating system based on our command protocol.

2. Does the SM2510K support read and write fingerprint template ?
    Answer:  Yes, SM2510K optical fingerprint module support read and wrtie fingerprint template . If you need, you can use Read Template Command to extract the fingerprint templates from SM2510K module and use Write Template Command to write the fingerprint templates into SM2510K module from other place.

3. Does the SM2510K's template data compatible with other manufacturer's fingerprint template data?
    Answer: No.  SM2510K optical fingerprint module only support CAMABIO fingerprint template format, it does not compatible with other manufacturer's fingerprint template format.

4. What should we do if we need more than 9,998 fingerprint users ?
    Answer:  We suggest you to build a server system by our CAMA-2000 Desktop USB fingerprint scanner and store the fingerprint templates on the server.  And the terminal device with SM2510K only for capturing fingerprint and transfer the fingerprint template to server to do verification and then return the result to terminal device.

5. Does the SM2510K optical fingerprint sensor module can work with Arduino development kit?
  Answer: Yes, the SM2510K optical fingerprint sensor module can work with Arduino board.

6. Can you provide library SDK for Arduino?
Answer: Yes, we can provide a simple SDK for Arduino UNO development kit

7. Does SM2510K's size compatible with SM25 fingerprint module ?
Answer: SM2510K's optical fingerprint sensor is totally compatible with SM25 optical fingerprint sensor. But SM2510K have a extra PCBA board. So when you design your product, you should leave space for this PCBA board.

8. Does SM2510K's communication protocols and fingerprint template compatible with SM25 fingerprint module?
Answer: Yes. SM2510K's communication protocols and fingerprint template are compatible with SM25 fingerprint module.
