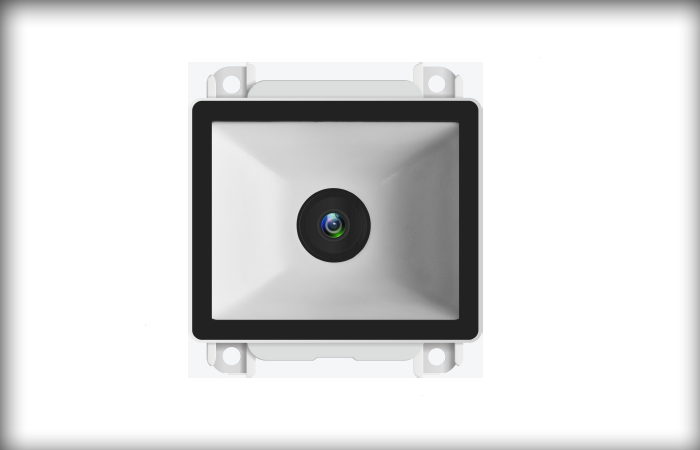

CAMA-QR333 is an integrated QR code scanner module which can be widely used for different application scenarios like bus transport, ticket machine, restaurant point of sales, kiosk machine, access control, etc.
As a high-performance code scanner module, CAMA-QR713 not only can easily read all types of 1D bar code, but also can read 2D QR code in high speed. It also can read QR or bar code both on paper and on screen.
CAMA-QR713 is a product which is developed in harsh working environment like full dark or extrame temperature. Based daul-core decode chip and third generation SIGA3 decode algorithm, it can well work with conditions like hit, shake and strong light exposure, etc.
Product Features
# High Recognition Capability
# High Scanning Speed
# High Contrast Recognition
# Hight Motion Tolerance
# Flicker-free Focusing Light System
# Super Small Dimension Size
# Support Multiple 1D and 2D code
# Support Both TTL-232 and USB Interface
Product Specifications
Performance Characters
|
Parameters |
Description |
|
|
Type of Image Sensor |
CMOS |
|
|
Imapge Pixel |
640 x 480 |
|
|
Light Source |
White Light for Supplement/Green Light for Indication |
|
|
Symbologies |
1D |
Code 128/EAN 128 |
|
Code 39/Code 93 |
||
|
Code 11 |
||
|
UPC/EAN |
||
|
Codabar |
||
|
Interleaved 2 of 5 |
||
|
Matric 2 of 5 |
||
|
MSI Code |
||
|
Industrial 2 of 5 |
||
|
GS1 Databar |
||
|
2D |
QR Code |
|
|
Data Matrix |
||
|
PDF417 |
||
|
Precision* |
QR ≥10mil; Code39 ≥5mil |
|
|
Field Angle |
69°（Horizontal），56°（Vertical） |
|
|
Lowest Contrast* |
≥25% |
|
|
Typtical Depth of Field* |
EAN-13（13mil） |
00~80mm |
|
Code 39 (8mil) |
10~55mm |
|
|
Code 39 (5mil) |
20~35mm |
|
|
Code 128（15mil） |
10~90mm |
|
|
PDF 417（6.7mil） |
25~40mm |
|
|
Data Matrix（10mil） |
20~30mm |
|
|
QR Code（15mil） |
15~55mm |
|
|
Mobile Bus QR Code |
30~90mm (suit for mobile QR) |
|
|
Alipay QR code |
20~170mm (suit for mobile QR) |
|
|
Scan Sensitivity** |
Pitch |
±45° |
|
Tilt |
360° |
|
|
Skew |
±45° |
|
Physical Specifications
|
Paramters |
Description |
|
Communication Interface |
TTL-232/USB |
|
Product Size |
64.7mm(W)×61mm(D)×26.7mm(H) |
|
Weight |
35g |
|
Working Voltage |
5V±5% |
|
Working Current |
<200mA |
|
Power Rating |
1W |
Environement Specifications
|
Parameters |
Description |
|
Working Temperature |
-20℃~60℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Humidity |
5% to 95% |
|
Light Environment |
Normal Indoor Light |
|
Operating Vibration |
10-150HZ，0.5G，3 axial positions，1min/oct，1 time/axial |
|
Endurance Vibration |
10-150HZ，2G，3 axial positions，1min/oct，20 times/axial |
|
Fall |
Falling from 1.5m is bearable. (50 times from 1.5m to concrete floor.) |
