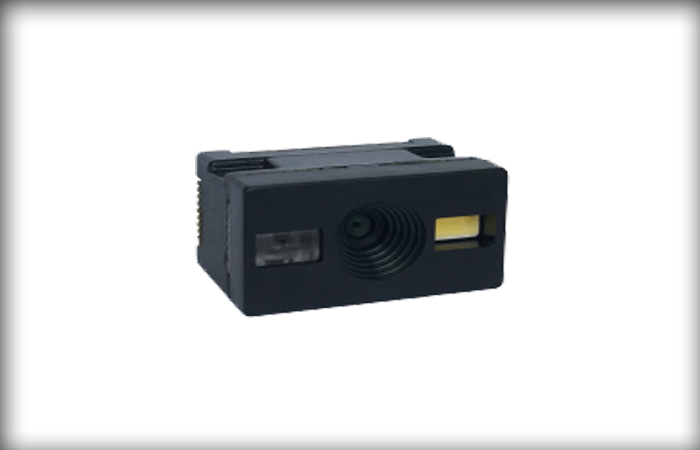

CAMA-QR322 OEM Barcode QR Code Scanner Module

Describe

Model : CAMA-QR322 OEM Barcode QR Code Scanner Module
Type of Image Sensor: CMOS Sensor
Image Pixel: 640 Pixel x 480 Pixel
Support Code: 1D and 2D code
Input Voltage: 3.3V±5%
Communication Interface: TTL-232, USB

Product details

CAMA-QR322 OEM Barcode QR Code Scanner Module

CAMA-QR322 barcode/QR code scanner module is an OEM barcode qr code module for secondary development. They are special designed for 1D/2D code scanner product manufacturer and developers. And these products can be widely used for different application scenarios like handheld scanner,restaurant point of sales, kiosk machine, access control, etc.

Product Features
  # High Recognition Capability
  # High Scanning Speed
  # High Contrast Recognition
  # Hight Motion Tolerance
  # Flicker-free Focusing Light System
  # Super Small Dimension Size
  # Support Multiple 1D and 2D code
  # Support Both TTL-232 and USB Interface

Product Specifications
  Performance Characters

Parameters

Description

Type of Image Sensor

CMOS

Imapge Pixel

640 x 480

Illumination

White Light

Focusing

Red Light

Symbologies

2D

QR Code,Data Matrix,PDF417,Micro PDF417,Micro QR,Maxi Code,Hanxin Code, etc

1D

EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,CodaBar,Code 128,Code93,ITF-14,ITF-6,Interleaved 2 of 5,Industrial 2 of 5,Standard 2 of 5,Matrix 2   of 5,GS1 Databar(RSS),Code 39,Code 11,MSI-Plessey,Plessey,etc

Precision*

Code39—4mil, QR—7mil, DM —5mil

Field Angle

36°(Horizontal),27°(Vertical)

Lowest Contrast*

≥20%

Typtical Depth of Field*

EAN-13(13mil)

50~300mm

Code 39(5mil)

50~120mm

Code 39 (8mil)

50~250mm

Code 128(15mil)

40~340mm

PDF 417(6.7mil)

45~100mm

Data Matrix(10mil)

25~100mm

QR Code(15mil)

25~200mm

Scan Sensitivity**

Pitch

±65°

Tilt

360°

Skew

±65°

 *Test Conditions:Teperature=23℃ environmental illumination=300LUX
 **Test Conditions: Teperature=23℃ environmental illumination=300LUX                                                                                                                                                                     Test Depth of Field=( Max Depth of Field+ Min Depth of Field)/2
 ***Maxi Code and Hanxin Code are optional codes, standard module does not support

Physical Specifications

Paramters

Description

Communication Interface

TTL-232; USB

Product Size

21.4(W)×13.5(D)×11.8(H)

Weight

3g

Indicator

Beeper; LED light

Working Voltage

3.3V±5%

Working Current

220mA (MAX)

Power Rating

≤720mW (MAX)

Standby Current

≤20mA

Sleep Mode Current

≤6mA    (Module can not into sleep mode with USB connection)

Start-up Time

≤250mS



Environement Specifications

Parameters

Description

Working Temperature

-20℃~60℃

Storage Temperature

-40℃~+70℃

Humidity

5% to 95%

Light Environment

Normal Indoor Light

Operating Vibration

10-150HZ,0.5G,3 axial positions,1min/oct,1 time/axial

Endurance Vibration

10-150HZ,2G,3 axial positions,1min/oct,20 times/axial

Fall

Falling from 1.2m is bearable. (50 times   from 1.2m to concrete floor.)
