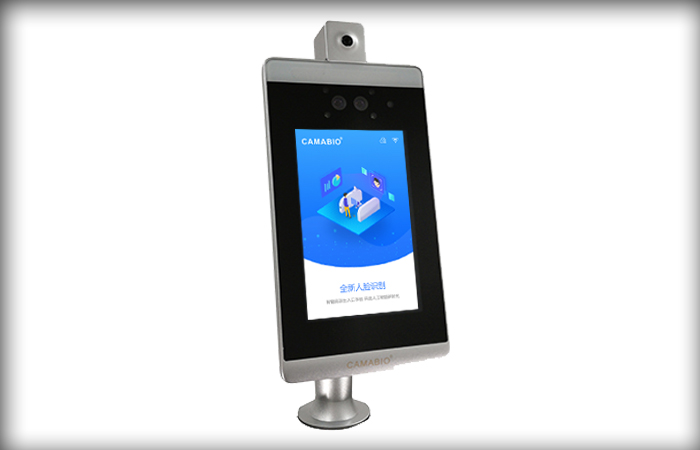

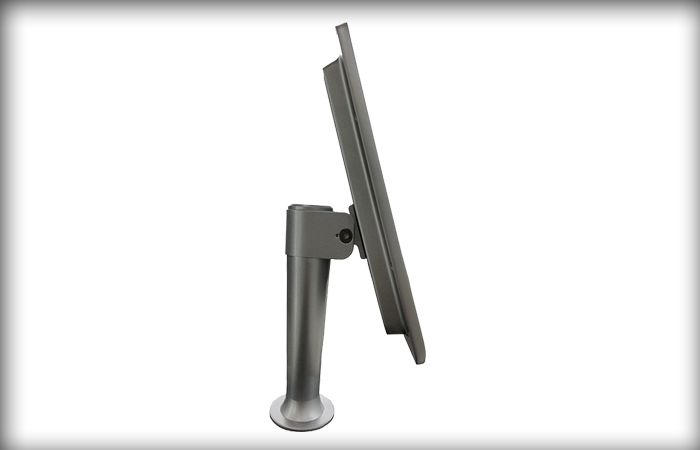

Product Name: CAMA-GA200T Face Recognition Access Control Terminal
User Capacity: 10,000 Face Users
Operating System: Android 6.0
Algorithm: CAMABIO Face Recognition Algorithm
Dual Camera: 2.0 Mega Pixel
Touch Screen: 7 inch Touch Screen
Support Body Temperature Detection
CAMA-GA200T is a visible and convenient face recognition access control device. Based on newest CAMABIO face recognition algorithm, it will be easy for customers to manage building or office’s access and attendance. It can be widely used for school, industrial park, government, company office, exhibition center, train station, airport, etc.
Product Features
# 10,000 Face Users (Can be Extended)
# 7 inch Touch Screen
# Dual Camera with 2.0 Mega Pixel
# CAMABIO Unique Face Algorithm
# Fast Identification Speed
# Support Both Online And Offline Work
# Support Live Face Detection
# Support Body Temperature Detection
# Support Dynamic Face Recognition
# IP66 Waterproof Level
Product Specifications
1. Basic Informations
|
Item No. |
Item Name |
Description |
|
1 |
Model No. |
CAMA-GA200 |
|
2 |
CPU |
Quad-Core 1.3 GHz |
|
3 |
Memory |
DDR3:16G, eMMC: 16G |
|
4 |
Screen |
7-inch touch screen, 800pixel x1200 pixel |
|
5 |
Speaker |
1*1W |
|
6 |
Temperature Detection Parameters |
Detection Distance: 30cm-60 cm Accuracy: ±0.3°c |
|
7 |
Camera |
Dual Camera, 2 million Pixels |
|
8 |
Operating System |
Android 6.0 |
|
9 |
Internet Support |
Support WIFI 2.4GHz & 5GHz and TCP/IP |
|
10 |
Product Size |
335mm x 134mm x 109mm |
|
Item No. |
Item Name |
Description |
|
1 |
Power Interface |
Standard 5.5mm x2.5mm DC Female connector, input 9V/2A DC power |
|
2 |
USB Interface |
USB 2.0 male connector (for PC data transfer) USB 2.0 female connector (USB disk data transfer) |
|
3 |
Internet Interface |
RJ45 interface |
|
4 |
Communication Interface |
RS485 Interface (for connecting turnstile) TTL Interface |
|
5 |
Relay Interface |
Relay output |
3. Technical Specifications
|
Item No. |
Item Name |
Description |
|
1 |
Power Adaptor |
DC 9V/2A (AC 220V to DC 9V adaptor) |
|
2 |
Live Face Detection |
Support |
|
3 |
Power Consumption |
2W under low consumption mode 6W under working mode |
|
4 |
Working Temperature & Working Humidity |
Temperature: -30℃-70℃ Humidity: 10%-90% |
|
5 |
Working Environment |
Both Indoor and outdoor |
|
6 |
Waterproof Level |
IP66 |
|
7 |
Identification Speed |
1:N< 1.4s |
|
8 |
Identification Distance |
30cm to 150cm |
|
9 |
Gross Weight |
1.2kg |
|
10 |
Installation |
Install for Turnstiles with Stand Holder |
|
11 |
User Capacity of Standalone Device |
10,000 Users |
