CAMA-FVM2283 Embedded Finger Vein Recognition Module

Describe

Model No: CAMA-FVM2283
Product Name: Embedded Finger Vein Recognition Module
Sensor Type: CMOS Sensor+Infrared Sensor
User Capacity: 50 Users
Communication Interface: USB and UART
Product Application: Embedded Application

Product details

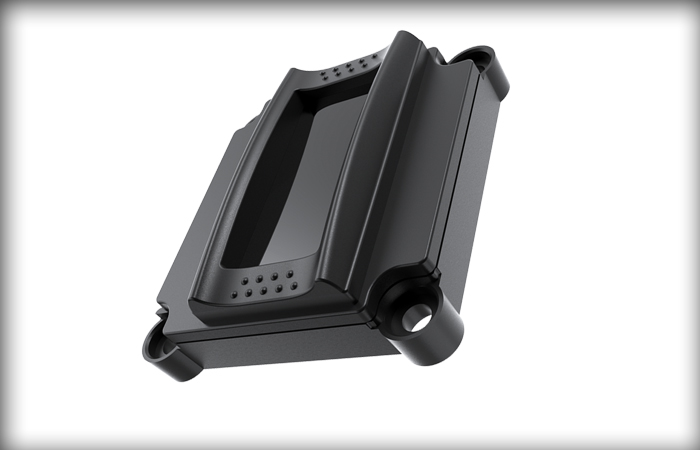

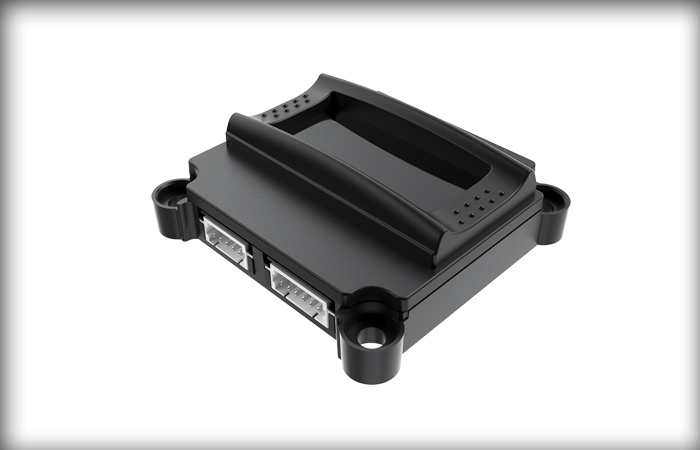

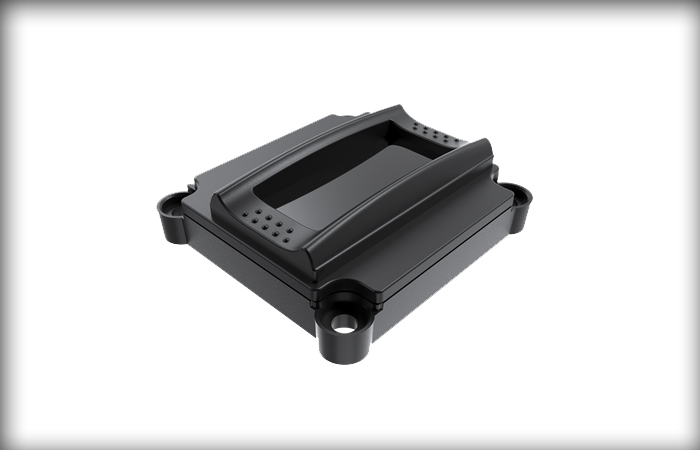

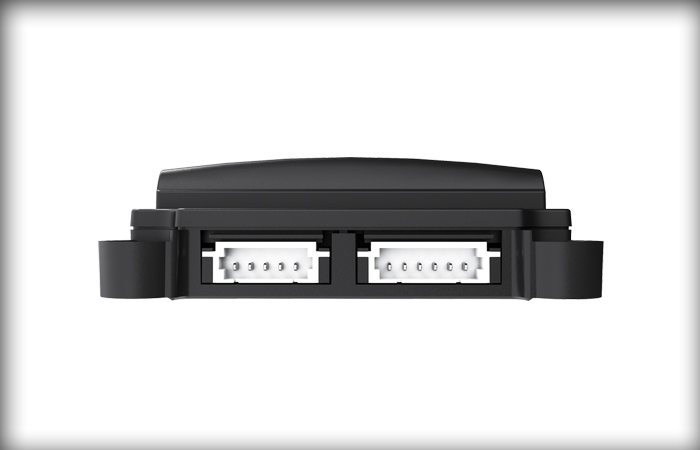

CAMA-FVM2283 Embedded Finger Vein Recognition Module

CAMA-FVM2283 is a super slim embedded finger vein recognition module developed by CAMA Biometrics.  It Integrated optical sensor,MCU, finger vein algorithm,flash memory all together. It is an ideal finger vein recognition module for small or slim biometric security devices

Product Features
  # 8.25mm Super Slim Thickness
  # 50 Finger Vein User Capacity
  # Sample Code for Embedded Application
  # Auto-Learning Function
  # Support Touch Sensing Activation
  # Support Both USB and UART Interface



Product Specifications

Parameters
Decriptions
Sensor Type
CMOS Sensor + Infrared Sensor
Product Size
39.5mm x 36.5mm x 8.25mm
MCU Parameters
192 MHZ 32 bit ARM Cortex-M4F Proccesor
Auto-Learning Function
Support
Fingerprint Template
1K Bytes
Communication Interface
UART And USB
FRR
<0.01% (Highest Security Level)
FAR <0.001% (Highest Security Level)
Identification Speed
1:1<0.5s  1:N<1s
Finger Vein Capacity
50 Finger Vein User Capacity
Touch Sensing Activation (Auto-on)
Module Will Be Actived Once Finger Vein Detected
Current Parameters
Work Mode <200mA
Standby Mode<20mA
Sleep Mode<5uA

Power Supply
3.3V±3%
Waterproof IP56
Work Environment
Work Humidity: 20% to 80%
Work Temperature: -20℃ to 60℃

Security Level
Normal; High; Highest
Communication Parameters
Parity=None  One Stop Bit=1
Flow Control=None
Baud Brate: 9600,19200,38400,57600,115200
Default Baud Rate: 57600bps
