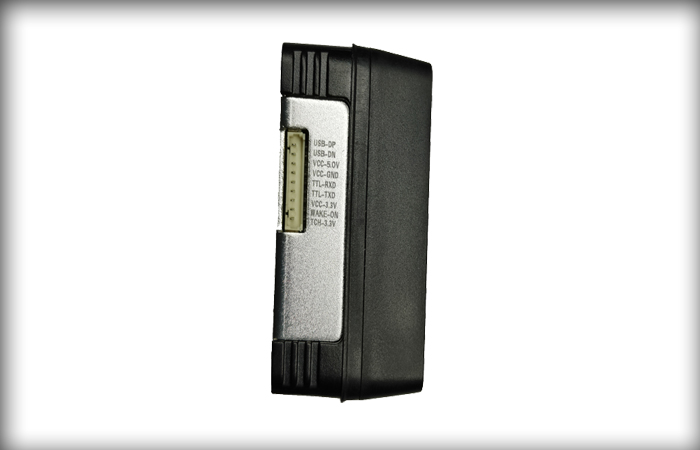

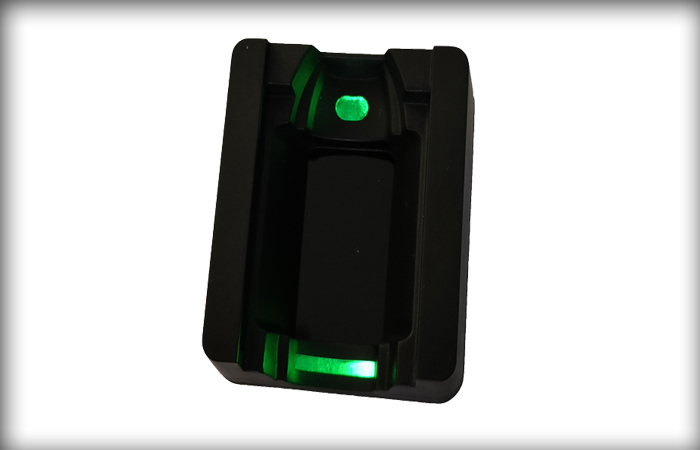

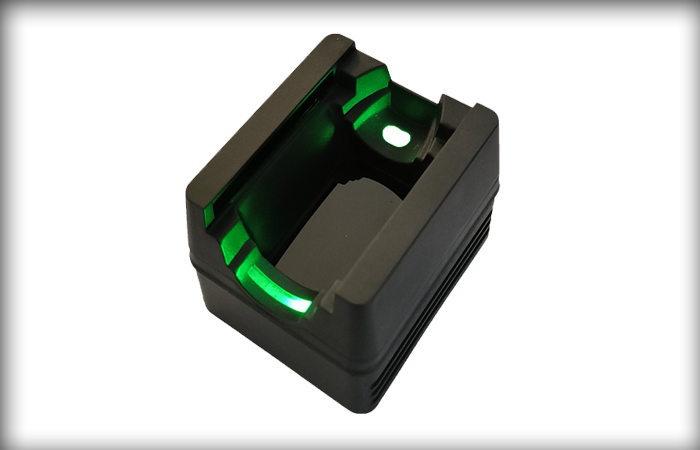

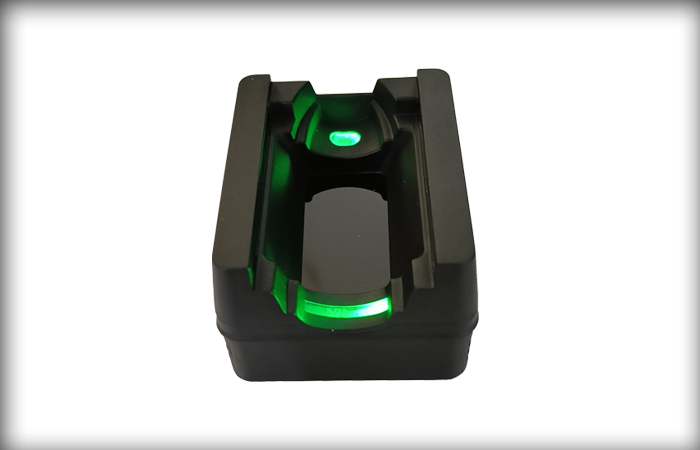

CAMA-FVM2201P Finger Vein Recognition Sensor Module
CAMA-FVM2201P finger vein recognition sensor module is new gerneration OEM finger vein recognition module developed by CAMA Biometrics. It Integrated optical sensor,MCU, finger vein algorithm,flash memory all together. It can suit for variety of embedded and server authentication applications.
Product Features
# 500 Finger Vein User Capacity
# SDK for embedded and server authentication
# Auto-Learning Function
# Support Touch Sensing Activation
# Support Both USB and UART Interface
# Breathing LED light
Product Specifications
|
Parameters |
Decriptions |
|
Sensor Type |
CMOS Sensor + Infrared Sensor |
|
Product Size |
48mm x 40mm x 29mm |
|
MCU Parameters |
144 MHZ 32 bit RISC High Capability DSP Proccessor |
|
Auto-Learning Function |
Support |
|
Fingerprint Template |
1K Bytes |
|
Communication Interface |
UART And USB |
|
FRR |
<0.01% (Highest Security Level) |
| FAR | <0.001% (Highest Security Level) |
|
Identification Speed |
1:1<0.5s 1:N<1s |
|
Finger Vein Capacity |
500 Finger Vein User Capacity |
|
Touch Sensing Activation (Auto-on) |
Module Will Be Actived Once Finger Vein Detected |
|
Current Parameters |
Work Mode <250mA Standby Mode<27mA Sleep Mode<5uA |
|
Power Supply |
3.3V±3% |
|
Breathing LED Light |
Support Offline Breathing(SOC Sleep Mode) |
|
Work Environment |
Work Humidity: 20% to 80% Work Temperature: -20℃ to 60℃ |
|
Security Level |
Normal; High; Highest |
|
Communication Parameters |
Parity=None One Stop Bit=1 Flow Control=None Baud Brate: 9600,19200,38400,57600,115200 Default Baud Rate: 57600bps |
