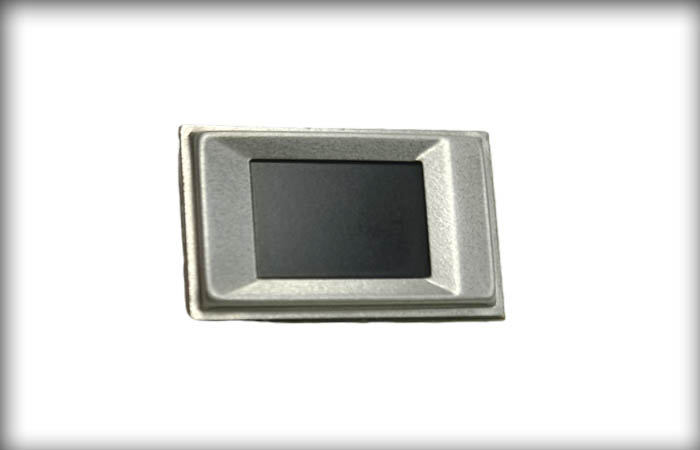

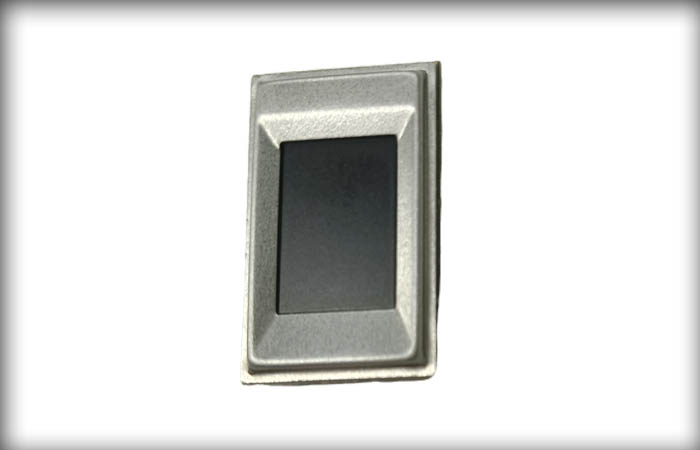

Model: CAMA-AFM360V3M FBI certified fingerprint scanners
Sensor: Capacitive Fingerprint Sensor
Fingerprint image size: 256 x 360 (pixel)
Template Format: ISO19794-2, ANSI378
1:1 and 1:N Fingerprint verification support
Resolution: 508dpi
Power supply: DC5V
Operating system: Windows/Android/Linux
Communication interface: USB
CAMA-AFM360V3M is latest capacitive fingerprint module developed by CAMABIO. It is special designed for biometric recognition device like biometric mobile device, POS terminal, biometric voter machine, SIM card registration fingerprint scanner, Bank biometric authentication devices, etc..
Product Features
# FBI PIV Image Quality
# Support WSQ Image Format
# Windows, Linux and Android SDK Supported
# Support Live Finger Detection
# International Standard Supported: ISO19794-2/4, ANSI 378/381
# Support 1:1: and 1:N verification
# FAR<0.001% FAR<0.1%
# Interface: 5V USB
# Pixel Matrix: 256 x 360 Pixel
# Resolution: 508dpi
# Operating system: Windows /Android/Linux
Product Specifiications
| PARAMETER | DESCRIPTION |
| Sensor Type | Capacitive Fingerprint Sensor |
| Sensor Area | 18.81mm x 13.54mm |
| Resolution / Grey Scale | 508dpi / 256 level |
| Pixel Matrix | 256 x 360 Pixel |
|
Template Format |
ISO19794-2, ANSI378 |
| Matching time | Average Time in case of 1:40,000 matching <1s |
| Live Fingerprint Detection | Support Live Finger Detection |
| Sensor size | 35mm x 23mm x 3.9mm |
| ESD | Contact: ±8KV， Air: ±15KV |
|
Fingerprint Matching Mode |
1:1 and 1:N Fingerprint Verification |
| Interface | 5V USB |
| FRR | False Rejection Rate <0.1% |
| FAR | False Acceptance Rate <0.001% |
| Working environment | -20 to 60℃ / 10-90% |
| Operating System | Windows 10/Android 5.0~Newer /Linux 4.9 Kernel ~newer |
| Support International Standard |
ANSI_FMR (ANSI / INCITS 378-2009) ANSI_FIR (ANSI / INCITS 381-2009) ISO_FMR (ISO / IEC 19794-2 : 2011) ISO_FIR (ISO / IEC 19794-4 : 2011) WSQ (Wavelet Scalar Quantization) NFIQ (NIST Fingerprint Image Quality) |
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. AFM360V3M Datasheet
2. CamaFinger SDK
If you have any technical questions before you buy CAMA-AFM360V3M FBI PIV Certified capacitive fingerprint sensor module, you can contact cama@szcama.com for support.
Where you can use this product ?
CAMA-AFM360V3< FBI PIV Certified capacitive fingerprint sensor module can be widely used for products below
1. Biometric mobile device
2. POS terminal
3. Biometric voter machine
4. SIM card registration fingerprint scanner
5. Bank biometric authentication devices
FAQs About CAMA-AFM360V3M FBI Certified Fingerprint Sensor Scanners
1. Does the CAMA-AFM360V3M Capacitive Fingerprint Sensor Module support Windows, Android or Linux system?
Answer: Yes, CAMA-AFM360V3 Capacitive fingerprint sensor module can work with these operating system. Actually CAMA-AFM360V3 Capacitive fingerprint sensor module supports Windows, Linux and Android SDK.
2. Does CAMA-AFM360V3M Capacitive fingerprint sensor module support read and write fingerprint template ?
Answer: Yes, CAMA-AFM360V3 Capacitive fingerprint sensor module supports read and wrtie fingerprint template.
3. Does the CAMA-AFM360V3M Capacitive fingerprint sensor module provide FBI certification ?
Answer: Yes, CAMA-AFM360V3 capacitive fingerprint sensor module provides FBI Personal Identify Verification (PIV) certification.
