Model: CAMA-AFM360V2M FBI PIV Single Fingerprint Scanner module
Sensor: Capacitive Fingerprint Sensor
Fingerprint image size: 256 x 360 (pixel)
Template Format: ISO19794-2, ANSI378
1:1 Fingerprint verification support
Resolution: 508dpi
Power supply: DC5V
Operating system: Windows (32/64bit) / Android (4.1~10)/Linux
Communication interface: USB & UART

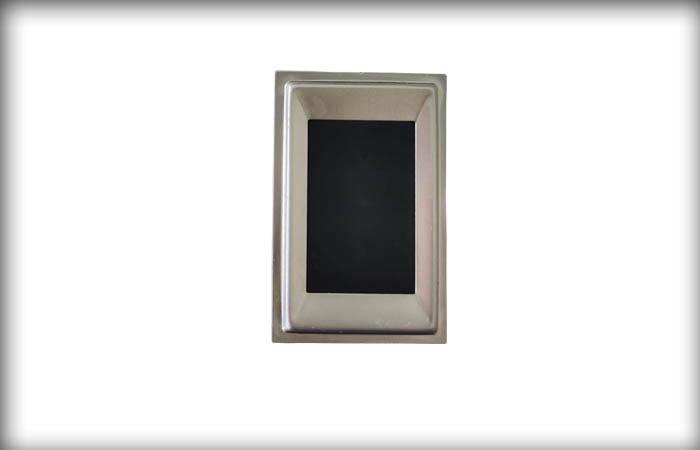

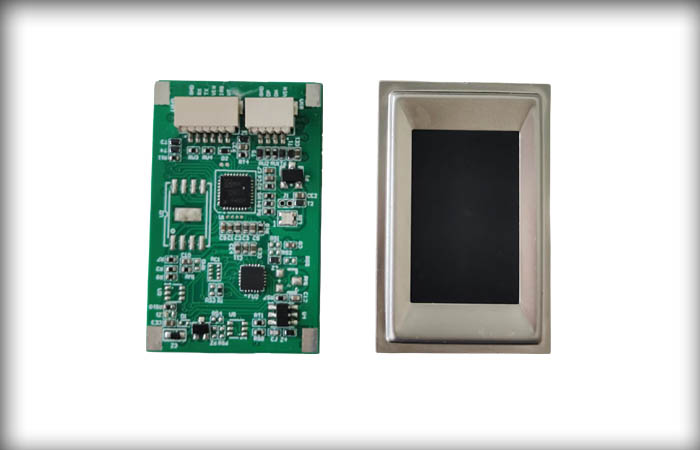

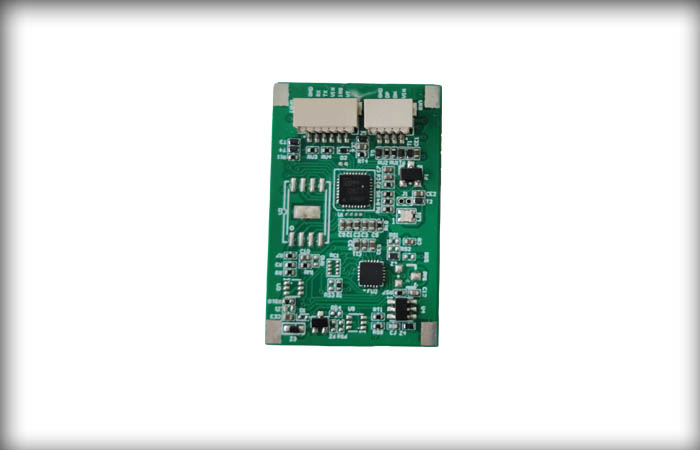

CAMA-AFM360V2M is a capacitive fingerprint module developed by CAMABIO. It is special designed for biometric recognition device like biometric mobile device, citizen identity authentication device, biometric voter machine, bank biometric authentication devices, etc..
Product Features
# FBI PIV Image Quality
# Communication Protocols provided
# International Standard Supported: ISO19794-2/4, ANSI 378/381
# Support 1:1 verification
# FAR<0.001% FAR<0.1%
# Interface: UART & USB
# Pixel Matrix: 256 x 360 Pixel
# Resolution: 508dpi
# Operating system: Windows (32/64bit) / Android (4.1~10)/Linux
Product Specifiications
| PARAMETER | DESCRIPTION |
| Sensor Type | Capacitive Fingerprint Sensor |
| Sensor Area | 22.15mm x 14.15mm |
| Resolution / Grey Scale | 508dpi / 256 level |
| Pixel Matrix | 256 x 360 Pixel |
|
Template Format |
ISO19794-2, ANSI378 |
| Matching time | Average Time in case of 1:100,000 matching <1s |
| Sensor size | 31.77mm x 23mm x 5.4mm |
| Communication Protocols | CAMABIO AFM series protocols |
|
Fingerprint Matching Mode |
1:1 Fingerprint Verification |
| Interface | UART 3.3V , USB 5V |
| FRR | False Rejection Rate <0.1% |
| FAR | False Acceptance Rate <0.001% |
| Working environment | -20 to 60℃ / 10-90% |
| Operating System | Windows (32/64bit) / Android (4.1~10)/Linux |
| Support International Standard |
ANSI_FMR (ANSI / INCITS 378-2004) ISO_FMR (ISO / IEC 19794-2 : 2005) |
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. AFM360V2M testing DEMO
2. Communication Protocol
If you have any technical questions before you buy CAMA-AFM360V2M FBI standard fingerprint scanners, you can contact cama@szcama.com for support.
Where you can use this product ?
CAMA-AFM360V2M FBI standard fingerprint scanners can be widely used for products below
1. Biometric mobile device
2. POS terminal
3. Biometric voter machine
4. SIM card registration fingerprint scanner
5. Bank biometric authentication devices
FAQs About CAMA-AFM360V2M FBI Standard Fingerprint Scanners
1. Does the CAMA-AFM360V2M FBI Standard Fingerprint Scanners support Windows, Android system?
Answer: Yes, CAMA-AFM360V2M support all operating system like Windows, Android, Linux,etc. Developers can develop related software according the communication protocols provided by CAMABIO.
2. Does CAMA-AFM360V2M FBI Standard Fingerprint Scanners support read and write fingerprint template ?
Answer: Yes, CAMA-AFM360V2M fingerprint scanners supports read and wrtie fingerprint template.
3. Does the CAMA-AFM360V2M FBI Standard Fingerprint Scanners provides FBI certification ?
Answer: Yes, CAMA-AFM360V2M fingerprint scanners provides FBI Personal Identify Verification (PIV) certification.
