Product Name |
CAMA-3000D Compact USB Fingerprint Scanner |
Sensor Type | Optical Fingerprint Sensor |
Image Pixel | 300 Pixel x 400 Pixel |
Fingerprint Capacity | No limit, depends on computer configurations |
Template format | ISO19794-2, ANSI378 |
Support Interface | USB2.0 |
Verification Method |
1:1 and 1:N |
Fingerprint Sensor Area | 16.5mm x 21.5mm |

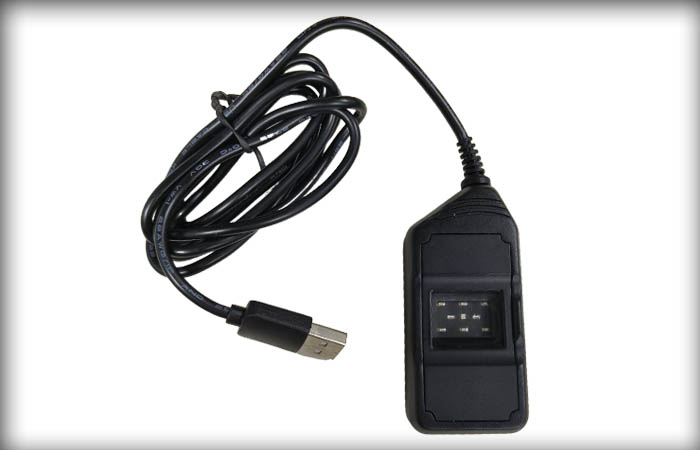

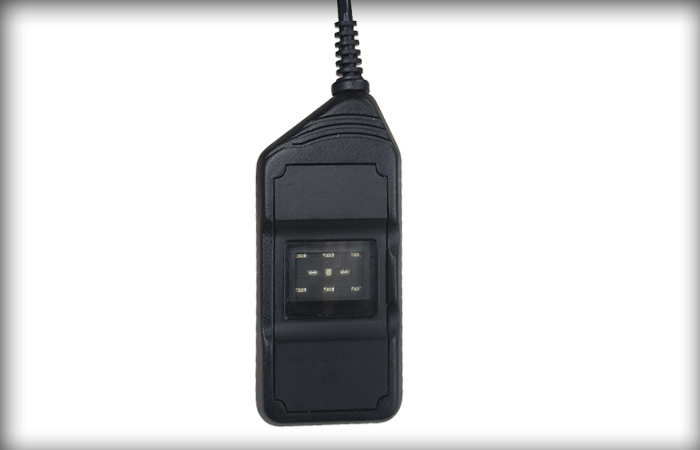

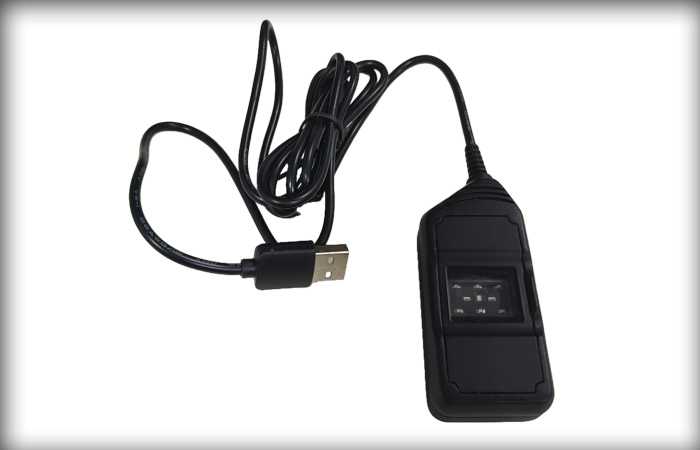

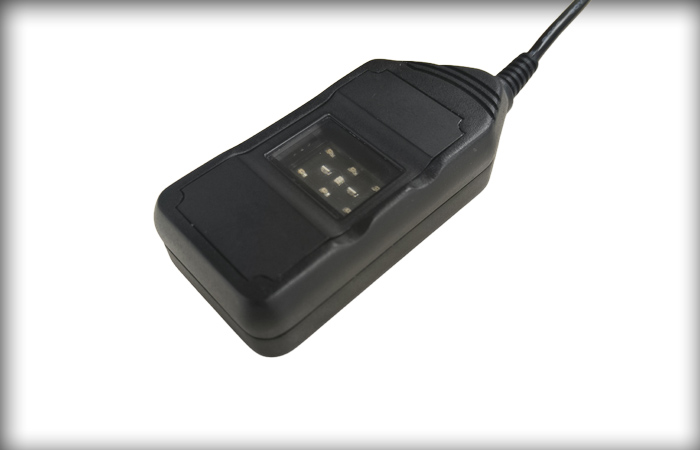

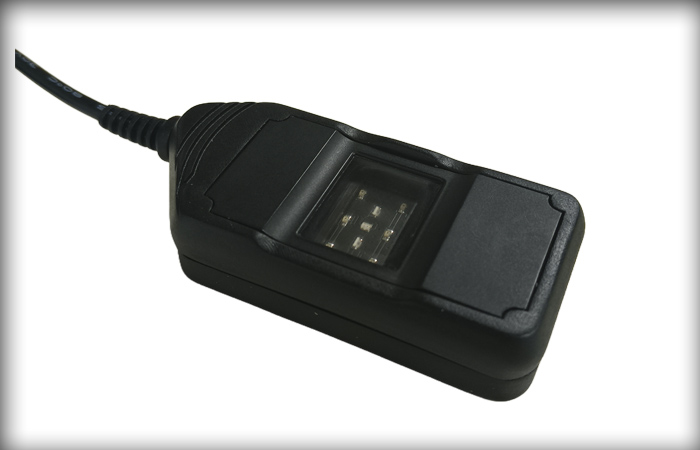

CAMA-3000D Compact USB Fingerprint Scanner
CAMA-3000D Compact USB Fingerprint Scanner is latest optical fingerprint scanner developed by CAMABIO. It is special designed for desktop applications like bank authentication, telecommunication SIM card registration identity authentication, network security authentication, time attendance management, etc..
Product Features
# Support ISO/IEC 19794-2 and ANSI/INCITS378 template
# Support ISO/IEC 19794-4 and ANSI/INCITS381 Image
# Support WSQ Image Format
# Live Finger Dectection Function
# 360 degree identification
# Auto-learning function
# Touch Sense Activation function
# Fast identification speed
# Support 1:1: and 1:N verification
# FAR<0.001% FAR<0.1%
# Support Windows, Linux and Android SDK
Product Specifications
ITEM | DESCRIPTION |
Sensor Type | Optical Fingerprint Sensor |
Resolution /Gray scale | 500dpi /256level |
Sensor Area | 16.5mm x 21.5mm |
Matching time | Average time in case of 1:40000 matching <1s |
Pixel Matrix | 300 Pixel x 400 Pixel |
Template Format | ISO19794-2 , ANSI378 |
Live Finger Detection | Support Live Finger Detection |
Acceptable Fingerprint Angle | ±45° |
Fingerprint capacity | No limit, depends on computer configurations |
Fingerprint Match Mode | 1:1 and 1:N Fingerprint verification |
Interface | USB2.0 |
Operating system | Windows 10 /Android(5.0~Newer)/Linux(4.9~Newer) |
Working environment | -20 to 60℃ / 10-90% |
FRR |
False Rejection Rate <0.1% |
FAR | False Acceptance Rate<0.001% |
Support International Standard |
ANSI_FMR (ANSI/INCITS 378-2009) ANSI_FIR (ANSI/INCITS 378-2009) ISO_FMR (ISO/IEC 19794-2:2011) ISO_FIR (ISO/IEC 19794-4:2011) WSQ (Wavelet Scalar Quantization) NFIQ (NIST Fingerprint Image Quality) |
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. CAMA-3000D Datasheet
2. CamaFinger SDK
If you have any technical questions before you buy CAMA-3000D Compact USB Fingerprint Scanner, you can contact us cama@szcama.com for support.
Where you can use this product ?
CAMA-3000D Compact USB fingerprint scanner can be widely used for following products
1. Fingerprint enrollment
2. PC/Network Security
3. Bank Authentication
4. SIM Card Registration Identify Authentication
5. Time Attendance Management
FAQs About CAMA-3000D Compact USB Fingerprint Scanner
1. Does the CAMA-3000D Compact USB fingerprint scanner support Windows, Android or Linux system?
Answer: Yes, 3000D compact fingerprint scanner can work with these operating system. It supports Windows 10(64bit),Android (5.0~Newer) and Linux (4.9~Newer).
2. Does the CAMA-3000D Compact USB fingerprint scanner module have SDK to provide?
Answer: Yes, the CAMA-3000D Compact USB fingerprint scanner module will be supported with CamaFinger SDK.
