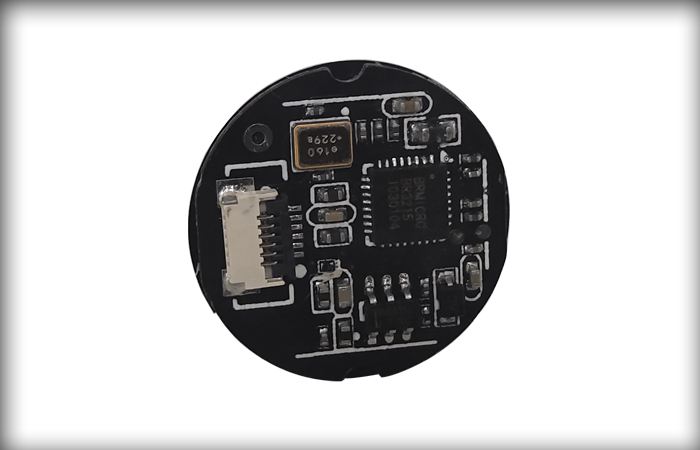

Model No.: CAMA-CRM120 Ultra Slim Capacitive Fingerprint Module

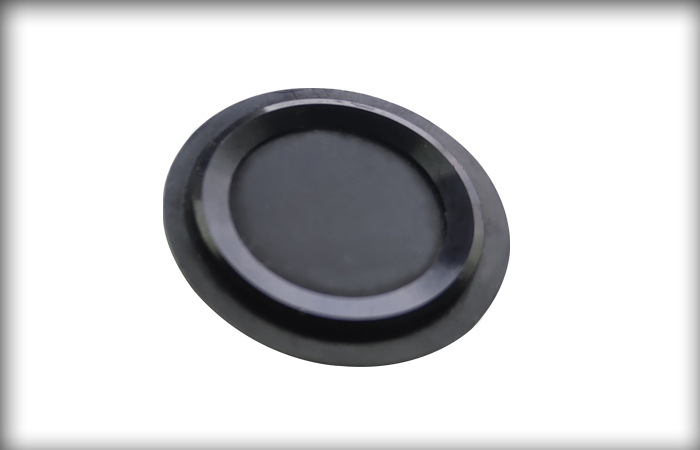

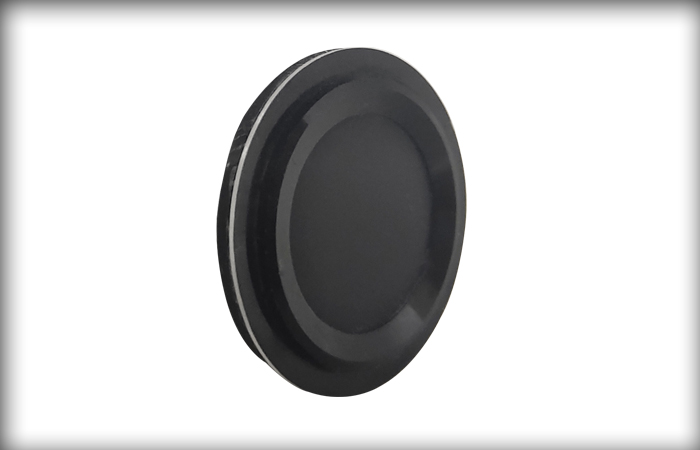

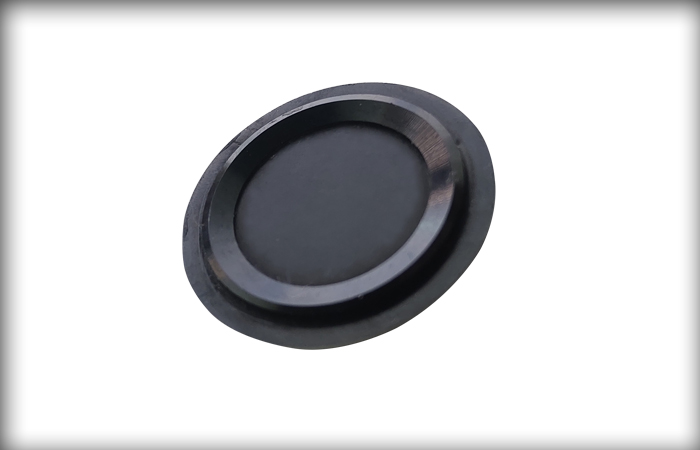

Fingerprint Sensor: Round Shape capacitive fingerprint sensor
Image pixel: 120 pixel x 120 pixel
Image Resolution: 500 DPI
Interface ： 3.3 V TTL UART Interface
Fingerprint Capacity: 100 fingerprint users
|
Item Name |
Parameters |
|
Product No. |
CAMA-CRM120 |
|
Fingerprint Sensor |
Round Shape Capacitive Fingerprint Sensor |
|
Module Size |
R 8.7mm |
| Fingerprint Sensor Size |
R 5.5mm |
|
DPI Resolution |
500 DPI |
|
Grey Scale |
256 Level |
|
Frame Rate |
30 FPS |
|
Communication Interface |
3.3V TTL UART |
|
Working Voltage |
+3.3V |
| Working Current |
Capture Mode < 35 mA; Standby Mode <uA |
|
Fingerprint Capacity |
100 FIngerprint Users |
|
Identification Speed |
Capture Speed : 325ms 1:N Identification: 535 ms |
|
Auto-On Time |
<100 ms |
| Baund Rate | 115200 |
|
Working Temperature |
-20℃ to 55℃ |
|
Working Humidity |
0% to 85% |
| FRR | <0.001% |
| FAR |
<1.5% |
|
Matching Method |
1:1 and 1:N |
|
Touch Sense Activation (Auto-on) |
Supported |
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. User Manual of CAMA-CRM120 ( Command Protocols Included)
2. DEMO Software For Testing Purpose
If you have any technical questions before you buy CAMA-CRM120 round shape capacitive fingerprint sensor module , you can contact cama@szcama.com for support.
Where you can use this product ?
CAMA-CRM120 Round shape capacitive fingerprint module can be widely used for products below
1. Fingerprint door lock system
2. Video Phone Access Control
3. Fingerprint car starter
4. Fingerprint Safe Box
5. Fingerprint Elevator Control
