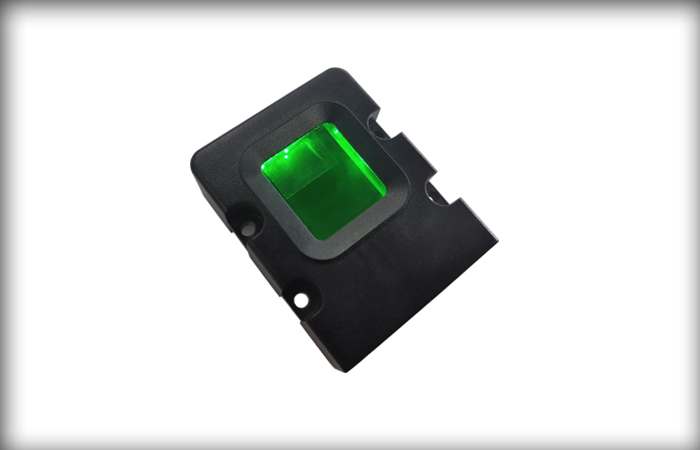

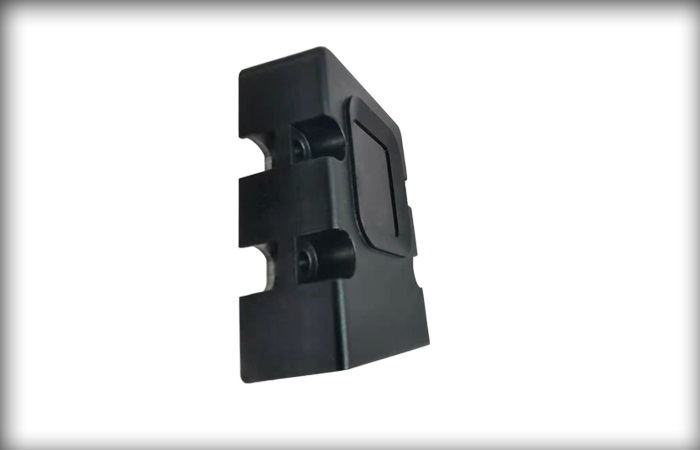

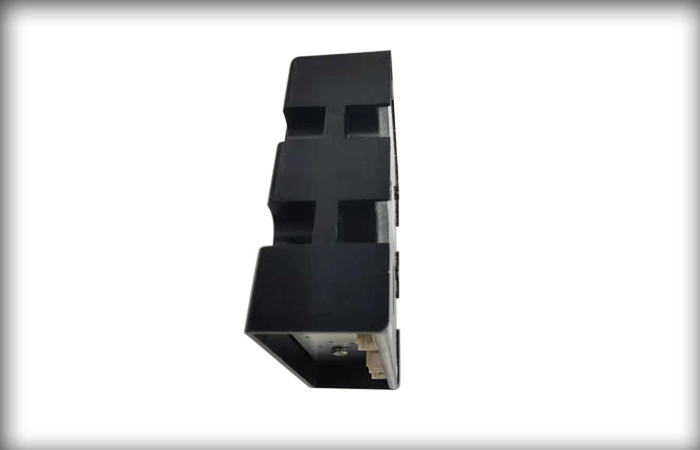

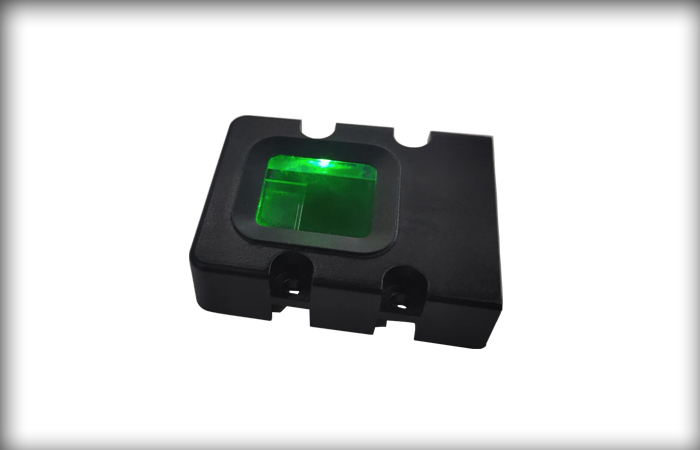

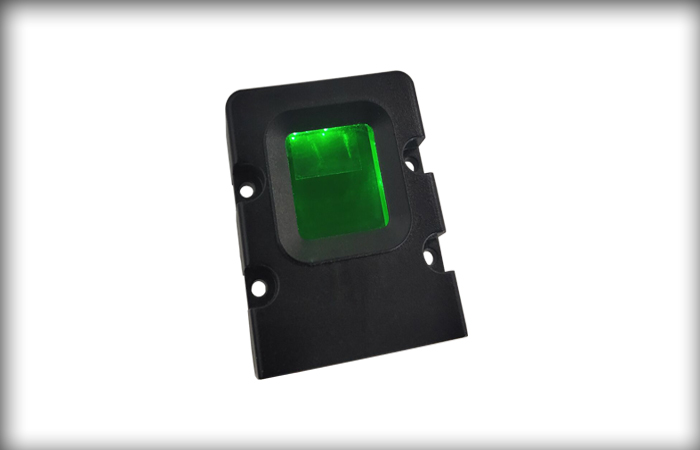

CAMA-CM01 Optical Fingerprint Scanner Module

Category:Optical Fingerprint Module

Describe

Model No.: CAMA-CM01 Optical Fingerprint Scanner Module

FBI PIV FAP20 Fingerprint Specification

ISO/IEC 19794-2 and ANSI/INCITS 378 Template

ISO/IEC 19794-4 and ANSI/INCITS 381 Image

Support 1:1 and 1:N fingerprint verification

JAVA SDK supported

Support USB Interface

Product details

CAMA-CM01 is latest compact optical fingerprint module developed by CAMABIO. It is specially designed for biometric recognition device like biometric mobile device, POS terminal, biometric voter, SIM card registration fingerprint scanner, bank biometric authentication devices, etc.

Product Features

# FBI Fingerprint Compliance

PIV specification, Mobile ID FAP20

# STQC Compliance

UIDAI Level-0 Specification

# Java SDK Supported

Develop your own software based on it

# International Standard Supported

ISO19794-2, ISO19794-4, ANSI 378, ANSI 381 and WSQ supported

# Both UART and USB Interface

It is easy for integration

# 1:1 and 1:N fingerprint verification

It can suit for more applications and no need extra fingerprint algorithm

Product Specifications

PARAMETER	DESCRIPTION
FRR	False Rejection Rate <0.1%
FAR	False Acceptance Rate< 0.001%
Matching time	Average Time in Case of 1:100,000 Matching < 1s
Pixel Matrix	256 Pixel x 360 Pixel
Template Size	1024 Bytes
Sensor Area	19mm x 21mm
Module Size	54.2mm x 42.78mm x 18mm
Image Resolution	500 DPI
Match Mode	1:1 and 1: N fingerprint verification
Gray Scale/ Image Type	8-bit, 256 Level
Power Supply	USB: 5V
Interface	USB
Working Temperature	-20 to 60°C
Working Humidity	10-90%
SDK supported	Android SDK
Waterproof	Scan Area waterproof supported
Support International Standard	ANSI_FMR (ANSI/INCITS 378 - 2004) ANSI_FIR (ANSI/INCITS 381 - 2004) ISO_FMR (ISO/IEC 19794 – 2 : 2005) ISO_FIR (ISO/IEC 19794 – 4 : 2005) WSQ(Wavelet Scalar Quantization) NFIQ(NIST Fingerprint Image Quality)

Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product

1. User Manual of CAMA-CM01 ( API Reference Included)

2. Android DEMO Software For Testing Purpose

3. Java Samples

If you have any technical questions before you buy CAMA-CM01 optical fingerprint scanner module, you can contact us cama@szcama.com for support.

Where you can use this product ?
CAMA-CM01 optical fingerprint scanner module can be widely used for following products

Biometric Mobile Devices

Biometric Vote Device

POS terminals

Fingerprint Scanner for Telecommunication

Law Enforcement Identity Authentication Devices
