CAMA -SM15 Optical Fingerprint Sensor Module

Describe

Model: CAMA-SM15 Optical Fingerprint Sensor Module
CPU: 120MHz RISC processor
Sensor: CMOS image sensor + optical total reflection module
Fingerprint image size: 242 x 266 (pixel)
Input voltage: DC3.3V
Working current: less than 120mA
Communication mode: UART



Product details

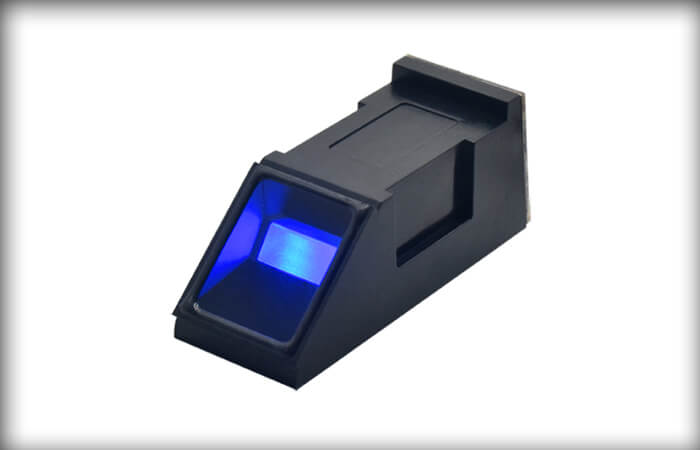

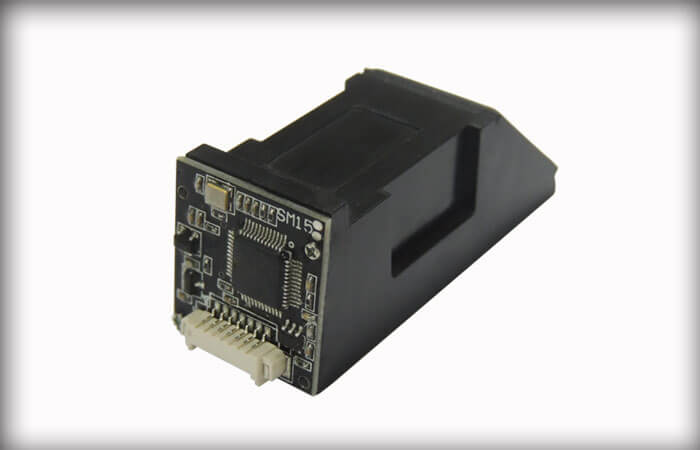

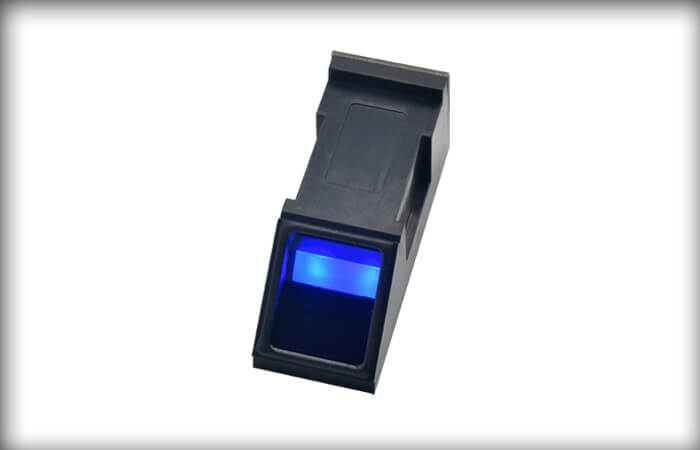

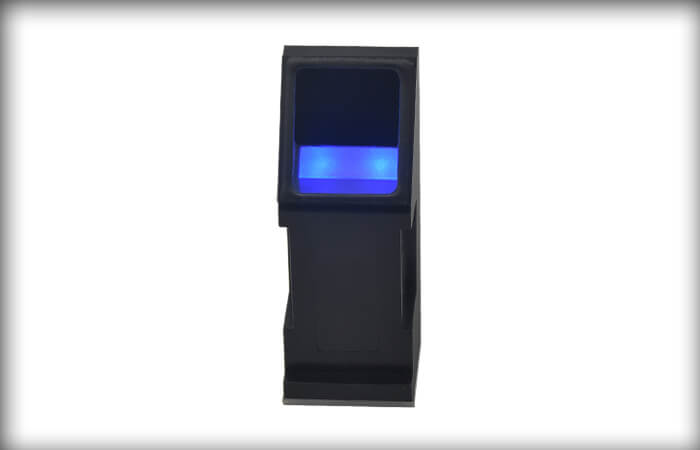

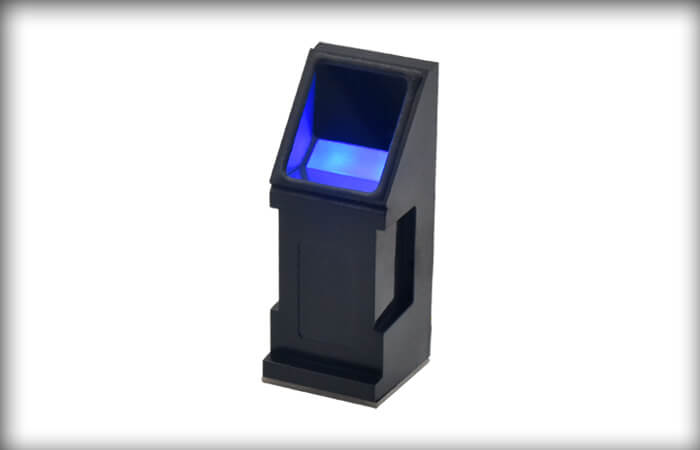

CAMA-SM15 Optical Fingerprint Sensor Module

CAMA-SM15 optical fingeprint sensor module is an ideal fingerprint sensor module designed for biometric security solution developer and manufacturers for integration with various applications such as access control system,time attendance,mobile device,safe box,door lock and so on. Powered by world best, multi-award winning CAMA fingerprint algorithm, CAMA-SM15 optical fingerprint sensor module offers powerful identification performance.


Product Features
   # 3000 fingerprints capacity

   # 360 degree identification

   # Auto-learning function

   # Touch Sense Activation function

   # Fast identification speed

   # Support 1:1: and 1:N verification

   # FAR<0.001% FAR<0.1%

   # Anti-scratch prism (K9 glass)

Product Specifications

Item Description
Fingerprint Sensor CAMA optical fingerpritn sensor
Fingerprint Scan Area 18mm x 20mm
Fingerprint Image 242 pixel x 266 pixel
Fingerprint Image Resolution 500 DPI
Fingerprint Template 496 bytes
Communication Interface  UART (3.3V)
FRR <0.1%
FAR <0.001%
Identification Speed 1:1<0.5s; 1:N(2000 fingerprints) <0.9s
Fingerprint Capacity 3000 Fingerprints
Work current < 100mA
Standby current < 20μA
Power supply DC 3.3V
Working temperature -10- 60
Working humidity 20% 80%

Product Size



Interface Details

Pin No.

Signal Name

Signal Description

PIN 1

Touch Power 3.3V

Touch   sense function need to supply power separately. Power: DC3.3V±0.1V, Current:   1.5uA to 2.5uA

PIN 2

Finger Detect

Output high level   when detected finger, and output low level once finger left

PIN 3

UART-TX

Module transmit   output, 3.3V TTL logic

PIN 4

UART-RX

Module receive   input, 3.3V TTL logic

PIN 5

GND

GND

PIN 6

VIN

DC input, range of   Voltage is 3.3V ± 10%

PIN 7

FP Reset

Reset at low level   (reset time>100ms), Work at high level. After Reset, it will cost about   350-400ms for system initializing and programs loading; Only after that the   module can communicate with MCU by UART.


Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product



  1. User Manual of CAMA-SM15 ( Command Protocols Included)

  2. DEMO Software For Testing Purpose

  3. Sample Code For Micro controller Unit



If you have any technical questions before you buy CAMA-SM15 optical fingerprint sensor module, you can contact us cama@szcama.com for support.

Where you can use this product ?
CAMA-SM15 optical fingerprint sensor module can be widely used for following products



1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Fingerprint car fleet management system

FAQs About CAMA-SM15 Optical Fingerprint Sensor Module

1. Does the SM15 optical fingerprint sensor module support Windows, Android or Linux system?
    Answer:  Yes, SM15 optical fingerprint sensor module can workd with these operating system.  Actually SM15 optical fingerprint module is an OEM optical fingerprint module, with our command protocols, it can work with any operating system.

2. Does the SM15 optical fingerprint sensor module support read and write fingerprint template ?
    Answer:  Yes, SM15 optical fingerprint module support read and wrtie fingerprint template . If you need, you can extract the fingerprint templates from SM15 by the read template command and wrtie fingerprint template into the SM15 from other place by write template command.

3. Does the SM15 optical fingerprint sensor module's template data compatible with other manufacturer's fingerprint template data?
    Answer: No.  SM15 optical fingerprint sensor module support CAMABIO fingerprint template format only, it do not compatible with other manufacturer's fingerprint template format.

4. What should we do if we need more than 3,000 fingerprint users ?
    Answer:  We suggest you to build a server system by our CAMA-2000 Desktop USB fingerprint scanner and store the fingerprint templates on the server.  And the device with SM15 only for capture fingerprint  and transfer the fingerprint template to server to do verification and then return the result to device
