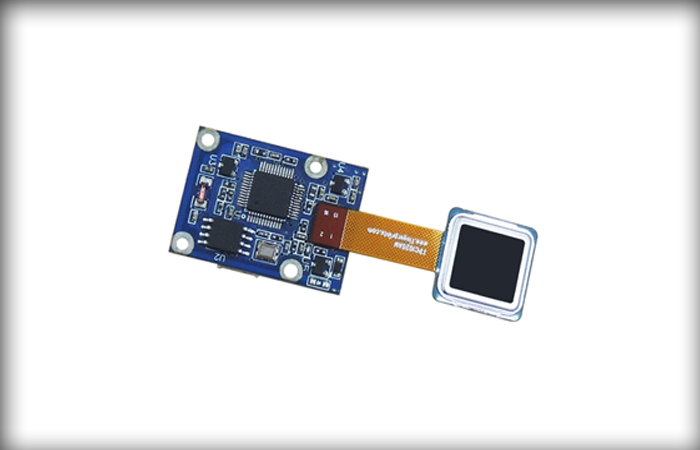

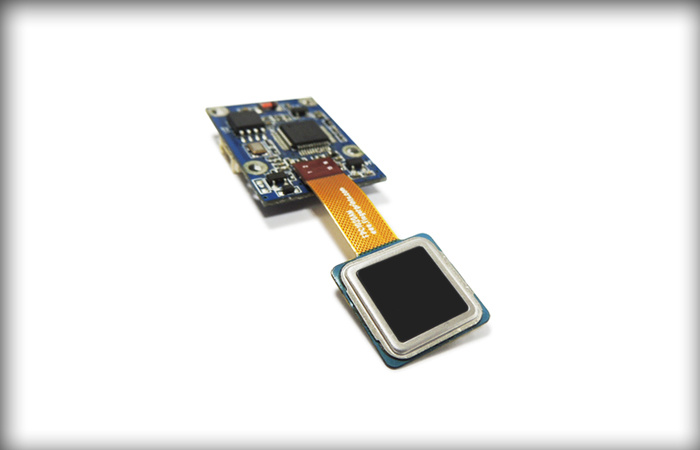

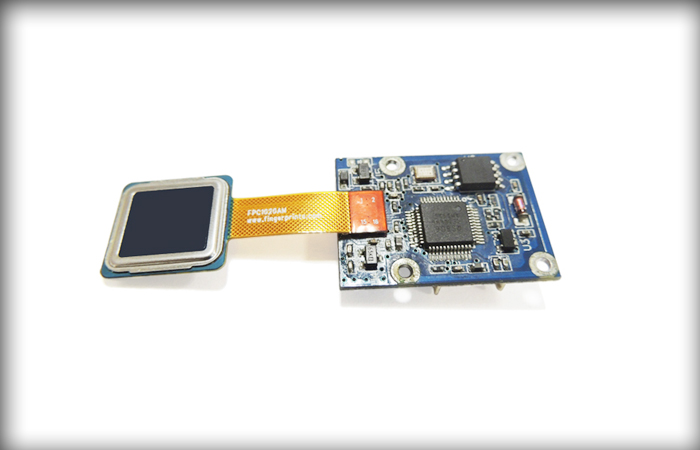

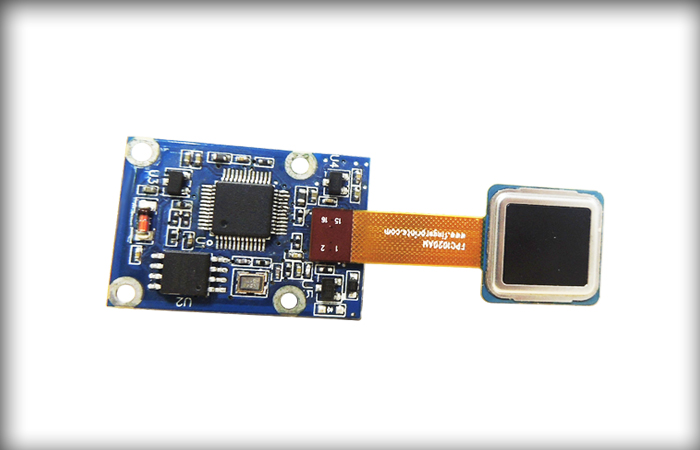

CAMA-AFM31 Capacitive Fingerprint Module With Original FPC1020 Fingerprint Sensor

Describe

Model: CAMA-AFM31 Capacitive Fingerprint Module

Sensor: FPC1020 capacitive fingerprint sensor

fingerprint image size: 242 x 266 (pixel)

Power supply: DC3.3V

Working current: < 100mA

Communication mode: UART & USB
Live fingerprint detection: Support

Product details

CAMA-AFM31 Capacitive Fingerprint Module With Original FPC1020 Fingerprint Sensor

CAMA-AFM31 Capacitive fingerprint module is an ideal OEM fingerprint module designed to biometric security solution developer and manufacturers for integration with various applications such as access control system,time attendance,mobile device,safe box,door lock and so on.

Powered by world best, multi-award winning CAMA fingerprint algorithm, CAMA-AFM31Capacitive fingerprint module offers powerful identification performance .

Product Features

       #  2000 fingerprints capacity
       #  360 degree identification
       #  Live scan function ( identify fake finger)
       #  Auto-learning function
       #  Fast identification speed
       #  Support 1:1: and 1:N verification
       #  FAR<0.001% FAR<0.1%
       #  Original FPC1020 fingerprint sensor


Product Specifications

Item

Description

Fingerprint Sensor

FPC1020 capacitive fingerprint sensor

Fingerprint Scan Area

10.64mm x 14mm

Fingerprint Image

242 pixel x 266 pixel

Fingerprint   Image Resolution

500DPI

Fingerprint Template

496 bytes

Communication Interface

USB (5V) & UART (3.3V)

FRR

<0.1%

FAR

<0.001%

Identification Speed

1:1<0.45s; 1:N (2000 fingerprints)<0.9s

Fingerprint Capacity

2000 Fingerprints

Working Current

<100mA

Standby Mode

<5mA

Power Supply

DC3.3V

Working Temperature

-20℃ - 60℃

Working Humidity

20% - 80%

Product Size

CAMA-AFM31 master board size

FPC1020 Fingerprint sensor dimensions


Interface Details
*USB interface: Use a 5 pin 1.25mm flat cable to connect with CN1

Pin. No. Signal name Signal Description Note.
Pin 1 USB DC5V Power supply of the module Power supply range:3.6V-
7.5V
Pin 2 DM USB D- ISP interface
Pin 3 DP USB D+
Pin 4 ID Module already grounded
inside
Pin 5 GND GND


*UART interface: Use a 5pin 2.0 pitch flat cable to connect with CN2

PIN No. Signal name Signal Description Note
Pin 1 DC3.3 V Module power supply 3.3V±0.5%
Pin 2 FP_RX Receive end of UART, 3.3V TTL Connect with MCU
Pin 3 FP_TX Send end of UART, 3.3V TTL Connect with MCU
Pin 4 GND GND
Pin 5 /RST Reset signal of the module L-reset H- Normal
work
Pin 6 FingerDet Fingerprint detect


Note: There is reset circuit on PCB board already, but for better control the reset
function, user can control reset action of the module by using an MCU GPIO pin.

Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product



1. User Manual of CAMA-AFM31 ( Command Protocols Included)

2. DEMO Software For Testing Purpose



If you have any technical questions before you buy CAMA-AFM31 Capacitive fingerprint sensor module , you can contact us for support.
Where you can use this product ?

CAMA-AFM31 Capacitive fingerprint module can be widely used for products below

1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Automatic Vendor Machine

FAQs About CAMA-AFM3 Capacitive Fingerprint Module

1. Does the CAMA-AFM31 capacitive fingerprint module support Windows, Android or Linux system?
    Answer:  Yes, CAMA-AFM31 capacitive fingerprint module can workd with these operating system.  Actually CAMA-AFM31 capacitive fingerprint module is an OEM optical fingerprint module, with our command protocols, it can work with any operating system.

2. Does CAMA-AFM31 capacitive fingerprint module support read and write fingerprint template ?
    Answer:  Yes, CAMA-AFM31 capacitive fingerprint module support read and wrtie fingerprint template . If you need, you can extract the fingerprint templates from CAMA-AFM31 by the read template command and wrtie fingerprint template into the CAMA-AFM31 from other place by write template command.

3. Does CAMA-AFM31 capacitive fingerprint module is using original FPC1020 capacitive fingerprint sensor ?
    Answer:  Yes, CAMA-AFM32 is using original FPC1020 capacitive fingerprint sensor.  It's performance is much better than the other capacitive fingerprint sensor in the market.

4. Does CAMA-AFM32 capacitive fingerprint module have waterproof function ?
    Answer:  CAMA-AFM32 only suit for indoor  working environment .  It is not waterproof.  If you need waterproof functions, we suggest you choose our SM series optical fingerprint modules .
