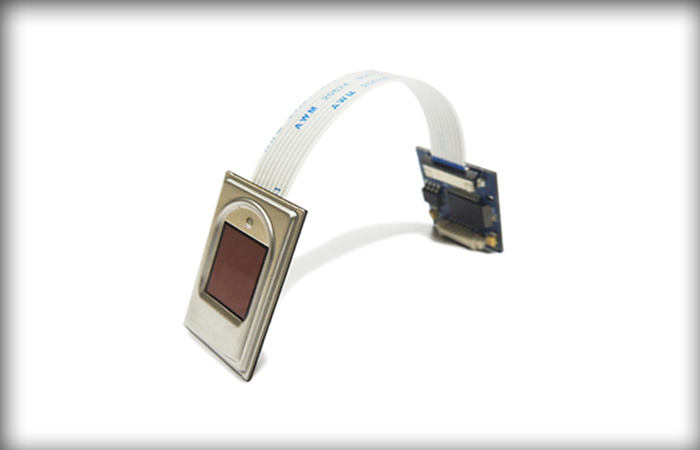

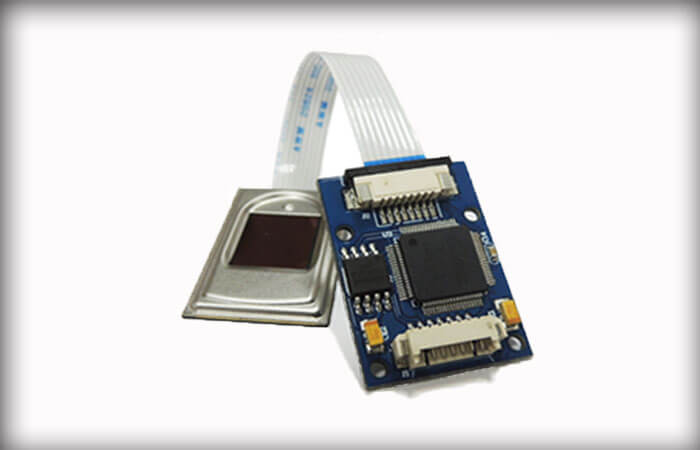

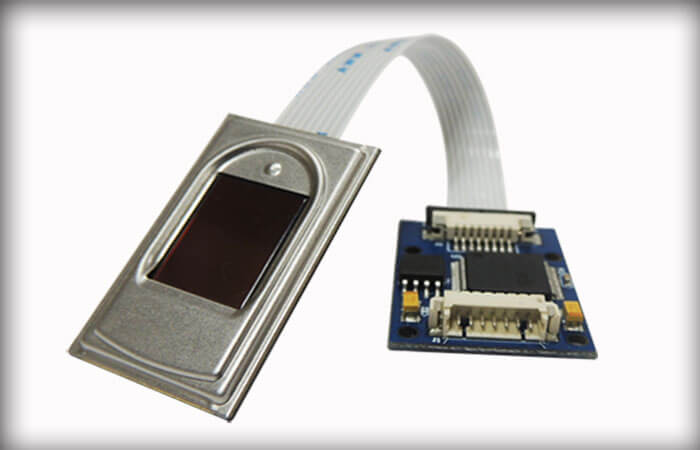

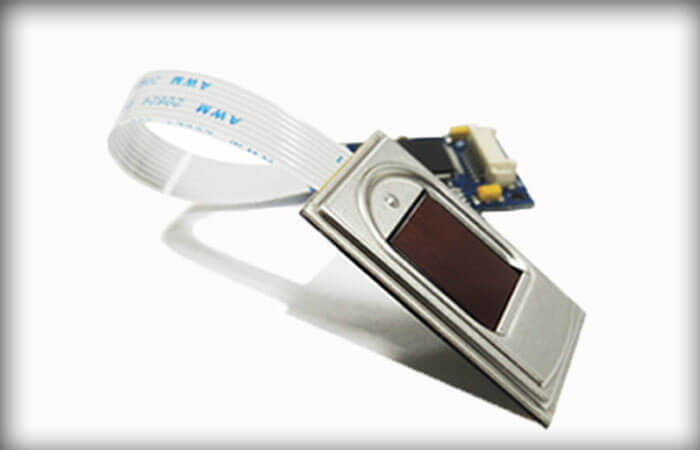

CAMA-SM30 Biometric Fingerprint Sensor Module With FPC1011 Fingerprint Sensor

Describe

Model: SM30 Biometric Fingerprint Sensor Module

Sensor: FPC1011 Capacitive Fingerprint  Sensor

Fingerprint image size: 242 x 266 (pixel)

Power supply: DC3.3V ±10%

Working current: <100mA

Communication mode: UART

Product details

CAMA-SM30 biometric fingerprint sensor module with FPC1011 Fingerprint Sensor

CAMA-SM30 biometric fingerprint sensor module is an ideal OEM fingerprint sensor module designed to biometric security solution developer and manufacturers for integration with various applications such as access control system,time attendance,mobile device,safe box,door lock and so on.

Powered by world best, multi-award winning CAMA fingerprint algorithm, CAMA-SM30 biometric fingerprint sensor module offers powerful identification performance .
Product Features

   # 3000 fingerprints capacity

   # 360 degree identification

   # Live scan function ( identify fake finger)

   # Auto-learning function

   # Fast identification speed

   # Support 1:1: and 1:N verification

   # FAR<0.001% FAR<0.1%

   # Original FPC1011fingerprint sensor

Product Specifiications

Item

Description

Fingerprint   Sensor

FPC1011   Capacitive Fingerprint Sensor

Fingerprint   Capacity

3000   fingerprints

Fingerprint   Template

496   bytes

Fingerprint Image

242   pixel x 266 pixel

Fingerprint Image   Resolution

500DPI

Power   Supply

DC3.3V   ± 10%

Communication   Port

UART,   3.3V TTL

FRR

<0.1%

FAR

<0.001%

Matching   Method

1:N   Identification and 1:1 Verification

Speed

Fingerprint   pretreatment<0.45s

1:N   (2000 fingerprints)<0.9s

Working   Current

<100mA,   Standby Mode <5mA

Working   Temperature

-20℃ -   60℃

Working   Humidity

20%   - 80%

Storage   temperature

-20℃ -   60℃

Product Size
CAMA-SM30 Master board size

FPC1011 sensor dimension


Interface Details

Pin No.

Signal name

Signal Description

PIN 1

USB-DP(Orange)

Usb data (Optional)

PIN 2

USB-DN(Green)

Usb data (Optional)

PIN 3

VCC(Red)

DC Input, Range of Voltage is 3.3V±10% DC5V(Optional)

PIN 4

GND(Black)

GND

PIN 5

UART-RX(Yellow)

Module Receive Input,3.3V TTL Logic

PIN 6

UART-TX(White)

Module Transmit Output,3.3V TTL Logic

PIN 7

RESET(Brown)

Optional

Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product



1. User Manual of CAMA-SM30 ( Command Protocols Included)

2. DEMO Software For Testing Purpose

3. Sample Code For Microcontroller Developing



If you have any technical questions before you buy CAMA-SM30 biometric fingerprint sensor module, you can contact cama@szcama.com for support.

Where you can use this product ?

CAMA-SM30 biometric fingerprint sensor module can be widely used for products below

1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Automatic Vendor Machine


FAQs About CAMA-SM30 Biometric Fingerprint Sensor Module

1. Does the CAMA-SM30 biometric fingerprint sensor module support Windows, Android or Linux system?
    Answer:  Yes, CAMA-SM30 biometric fingerprint sensor module can workd with these operating system.  Actually CAMA-SM30 biometric fingerprint sensor module is an OEM optical fingerprint module, with our command protocols, it can work with any operating system.

2. Does CAMA-SM30 biometric fingerprint sensor module support read and write fingerprint template ?
    Answer:  Yes, CAMA-SM30 biometric fingerprint sensor module support read and wrtie fingerprint template . If you need, you can extract the fingerprint templates from CAMA-SM30 by the read template command and wrtie fingerprint template into the CAMA-SM30 from other place by write template command.

3. Does CAMA-SM30 biometric fingerprint sensor module is using original FPC1011 capacitive fingerprint sensor ?
    Answer:  Yes, CAMA-SM30 is using original FPC1011 capacitive fingerprint sensor.  It's performance is much better than the other capacitive fingerprint sensor in the market.

4. Does CAMA-SM30 biometric fingerprint sensor module have waterproof function ?
    Answer:  CAMA-SM30 only suit for indoor  working environment .  It is not waterproof.  If you need waterproof functions, we suggest you choose our SM series optical fingerprint modules .
