CAMA-AFM60 Small Fingerprint sensor module

Describe

Model: CAMA-AFM60 Small Fingerprint Sensor Module

Sensor: Special Designed FPC1021 Capacitive Fingerprint Sensor

Fingerprint Image Size: 160 x 160 (pixel)

Fingerprint Capacity: 500 fingerprints

Working Voltage: DC3.3V

Working Current: <150mA

Communication Interface: UART

Product details

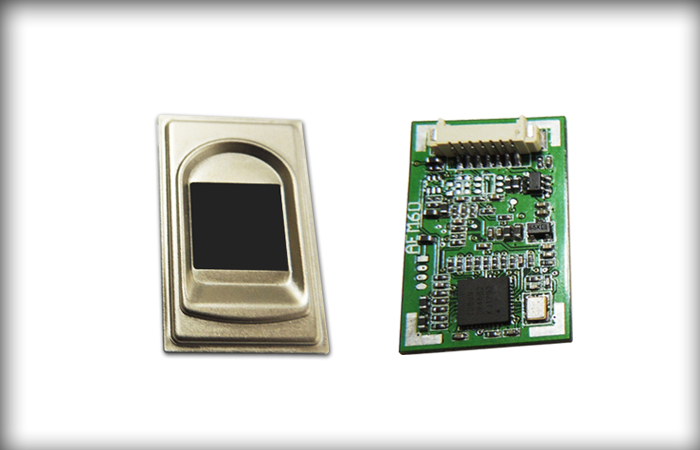

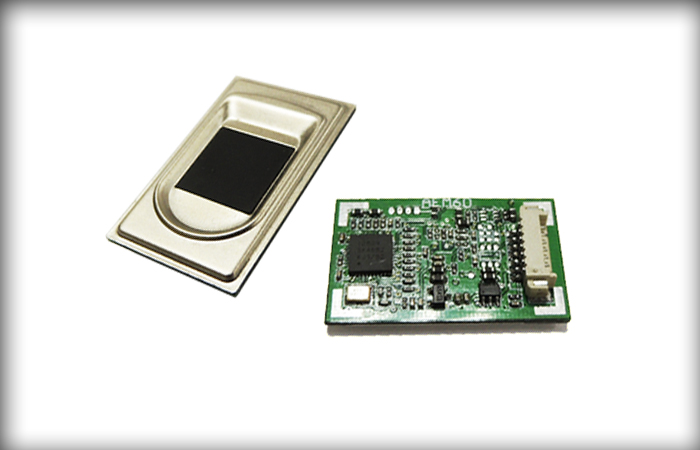

CAMA-AFM60 Small Fingerprint Sensor Module

CAMA-AFM60 small fingerprint sensor module is  a  cost effective OEM fingerprint module which specially developed for small capacity biometric applications.  Combined FPC1021 capacitive fingerprint sensor with CAMABIO fingerprint algorithm, the CAMA-AFM60 small fingerprint sensor module gets a lot of features like live finger detection,360 degree rotation verification ,auto-learning,etc.



With design of compact and low power consumption, the CAMA-AFM60 small fingerprint sensor module can make your device smaller and have a longer durance time.
Product Features

   # 500 fingerprints capacity
   # 360 degree identification
   # Live scan function ( identify fake finger)
   # Auto-learning function
   # Fast identification speed
   # Support 1:1: and 1:N verification
   # FAR<0.001% FAR<0.1%
   # FPC1021 fingerprint sensor


Product Specifications

Item

Description

Fingerprint   Sensor

FPC1021   Capacitive Fingerprint Sensor

Fingerprint   Algorithm

CAMABIO   Fingerprint Algorithm

Fingerprint   image

160 x 160   (pixel)

Fingerprint   Capacity

500   Fingerprints

Image   Resolution

500 DPI

Fingerprint   template

496 bytes

Communication   Interface

UART (3.3V   TTL)

FRR

< 0.1%

FAR

< 0.001%

Identification   Speed

1:1 <0.45S;   1:N (500 Fingerprints)<1S

Work current

< 150mA

Standby   current

< 20μA

Power supply

DC 3.3V

Working   temperature

 -25℃ To -60℃

Working   humidity

20% To 80%

Frome housing   color

 Silvery   or Golden

Product Size
CAMA-AFM60 Master board size

CAMA-AFM60 capacitive sensor dimensions

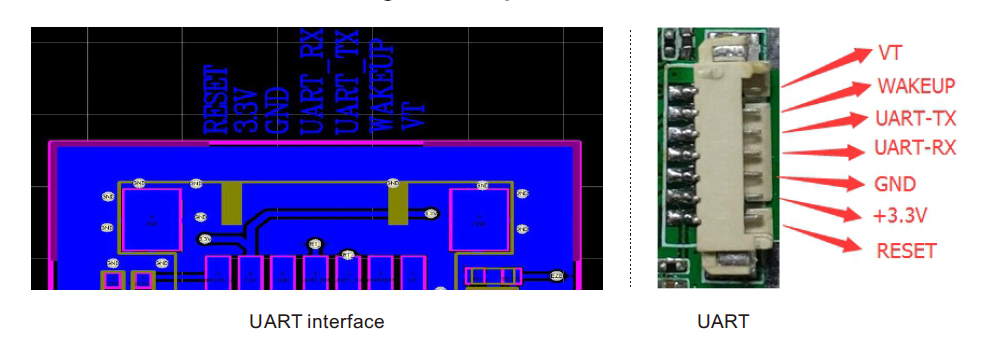

Interface Details
Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product



1. User Manual of CAMA-AFM60 ( Command Protocols Included)

2. DEMO Software For Testing Purpose



If you have any technical questions before you buy CAMA-AFM60 small fingerprint sensor module, you can contact us for support.

Where you can use this product?

CAMA-AFM60 small fingerprint sensor module can be widely used for products below



1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Fingerprint car fleet management system


FAQs About CAMA-AFM60 Small Fingerprint Sensor Module

1. Does the CAMA-AFM60 capacitive fingerprint sensor module support Windows, Android or Linux system?
    Answer:  Yes, CAMA-AFM60 small fingerprint sensor module can workd with these operating system.  Actually CAMA-AFM60 small fingerprint sensor module is an OEM optical fingerprint module, with our command protocols, it can work with any operating system.

2. Does CAMA-AFM60 small fingerprint sensor module support read and write fingerprint template ?
    Answer:  Yes, CAMA-AFM60 small fingerprint sensor module  support read and wrtie fingerprint template . If you need, you can extract the fingerprint templates from CAMA-AFM60 by the read template command and wrtie fingerprint template into the CAMA-AFM60 from other place by write template command.

3. Does CAMA-AFM60 small fingerprint sensor module have waterproof function ?
    Answer:  CAMA-AFM60 small fingerprint sensor module only suit for indoor  working environment .  It is not waterproof.  If you need waterproof functions, we suggest you choose our SM series optical fingerprint modules .
