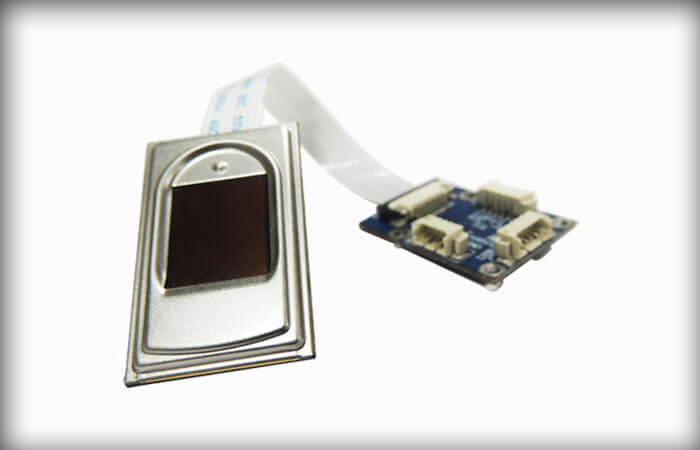

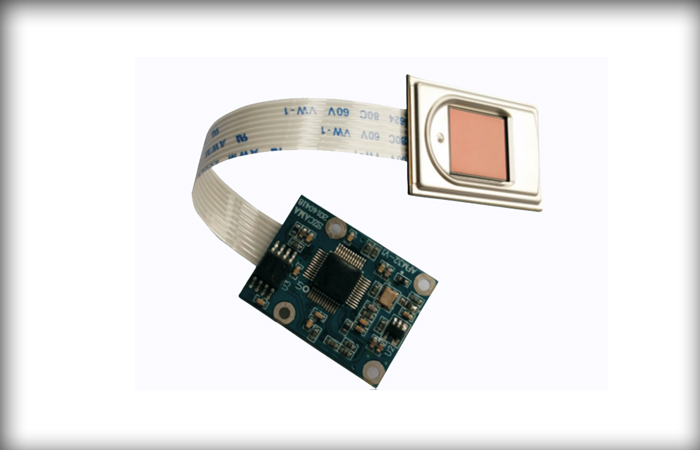

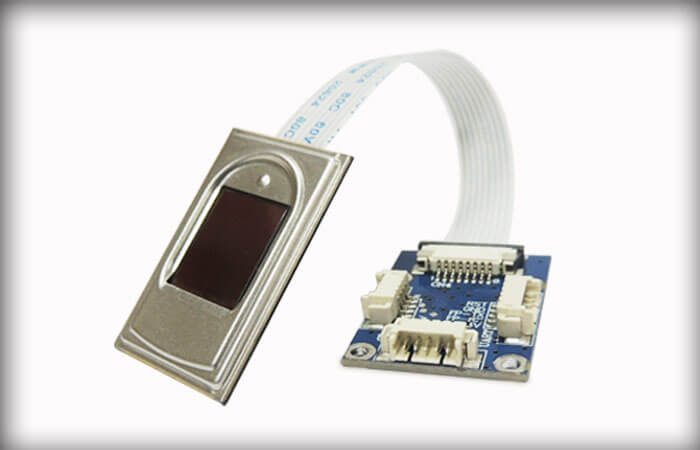

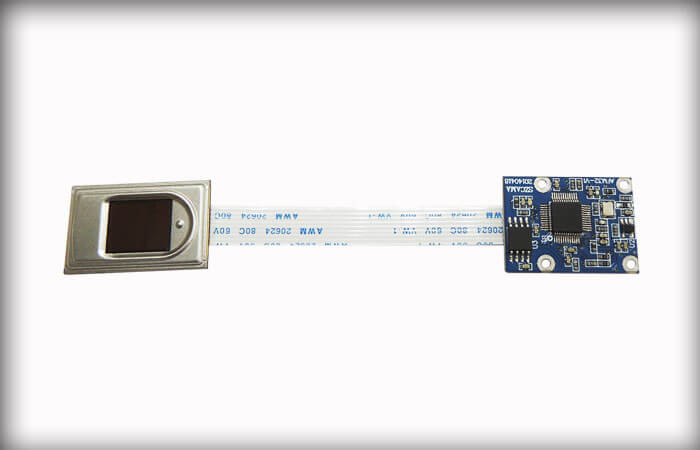

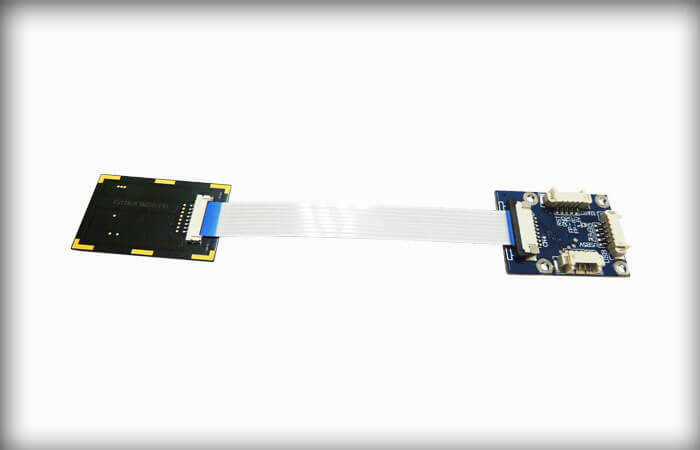

CAMA-AFM32 Capacitive Fingerprint Sensor Module

Describe

Model: AFM32 capacitive fingerprint sensor module
Sensor: FPC1011
Fingerprint capacity: 2000
Fingerprint image size: 242 x 266 (pixel)
Speed: Fingerprint pretreatment<0.45s; 1:N (2000 fingerprints) <0.9s
Voltage: DC3.3V
Working current: <100mA
Communication port: UART
Working Environment: Working Temperature: -20℃-60℃

Product details

CAMA -AFM32 Capacitive Fingerprint Sensor Module
CAMA-AFM32 Capacitive fingerprint sensor module is an OEM fingerprint module for secondary development. It can identify live fingers and refuse fake fingers, which belongs to higher security level comparing with optical ones.

It have features like features small size, low power consumption, simple ports, high reliability, small fingerprint template, large fingerprint capacity, etc. It is convenient to be embedded to user system for realizing clients required fingerprint verification products.

Powered by world best, multi-award winning CAMA fingerprint algorithm, CAMA-AFM32 Capacitive fingerprint sensor module offers powerful identification performance .

Product Features

  # 2000 fingerprints capacity

  # 360 degree identification

  # Live scan function ( identify fake finger)

  # Auto-learning function

  # Fast identification speed

  # Support 1:1: and 1:N verification

  # FAR<0.001%
  # FAR<0.1%

  # FPC1011 Capacitive fingerprint sensor

Product Specifications

Item Description
Fingerprint Sensor FPC1011 capacitive fingerprint sensor
Fingerprint Scan Area 10.64mm x 14mm
Fingerprint Image 242 pixel x 266 pixel
Fingerprint Image Resolution 500 DPI
Fingerprint Template 496 bytes
Communication Interface  USB(5V) & UART (3.3V)
FRR <0.1%
FAR <0.001%
Identification Speed 1:1<0.45s; 1:N(2000 fingerprints) <0.9s
Fingerprint Capacity 3000 Fingerprints
Work current < 100mA
Standby Mode < 5mA
Power supply DC 3.3V
Working temperature -10℃- 60℃
Working humidity 20%-80%

Product Size

CAMA-AFM32 Main Board Size

FPC1011 Fingerprint sensor dimension


Interface Details
image.png*USB interface: Use a 5 pin 1.25mm flat cable to connect with CN1

Pin. No. Signal name Signal Description Note.
Pin 1 USB DC5V Power supply of the module Power supply range:3.6V-
7.5V
Pin 2 DM USB D- ISP interface
Pin 3 DP USB D+
Pin 4 ID Module already grounded
inside
Pin 5 GND GND


*UART interface: Use a 5pin 2.0 pitch flat cable to connect with CN2

PIN No. Signal name Signal Description Note
Pin 1 DC3.3 V Module power supply 3.3V±0.5%
Pin 2 FP_RX Receive end of UART, 3.3V TTL Connect with MCU
Pin 3 FP_TX Send end of UART, 3.3V TTL Connect with MCU
Pin 4 GND GND
Pin 5 /RST Reset signal of the module L-reset H- Normal
work

Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product

1. User Manual of CAMA-AFM32 ( Command Protocols Included)

2. DEMO Software For Testing Purpose

If you have any technical questions before you buy CAMA-AFM32 Capacitive fingerprint sensor module, you can contact us for support.

Where You Can Use This Product?
CAMA-AFM32 Capacitive fingerprint sensor module can be widely used for products below

1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Automatic Vendor Machine
